4 Inch IPS LCD SA5 Multi Functional Handheld Spectrum Analyzer 100k-5.3GHz 2-in-1 Signal Generator Built In 5000mAh Link To PC
Product features:
*1.【 2024 Upgraded SA5 】 Upgraded IPS LCD 4-inch high-definition display screen and knob design, making operation easier, touch more sensitive, and more accurate to help you quickly read data.
*2.【 Upgrade battery life 】 The upgraded SA5 analyzer has a built-in large capacity 5000mAh rechargeable battery, providing 10 hours of portable use time. It comes with a Type-C charging cable, eliminating the need for frequent charging

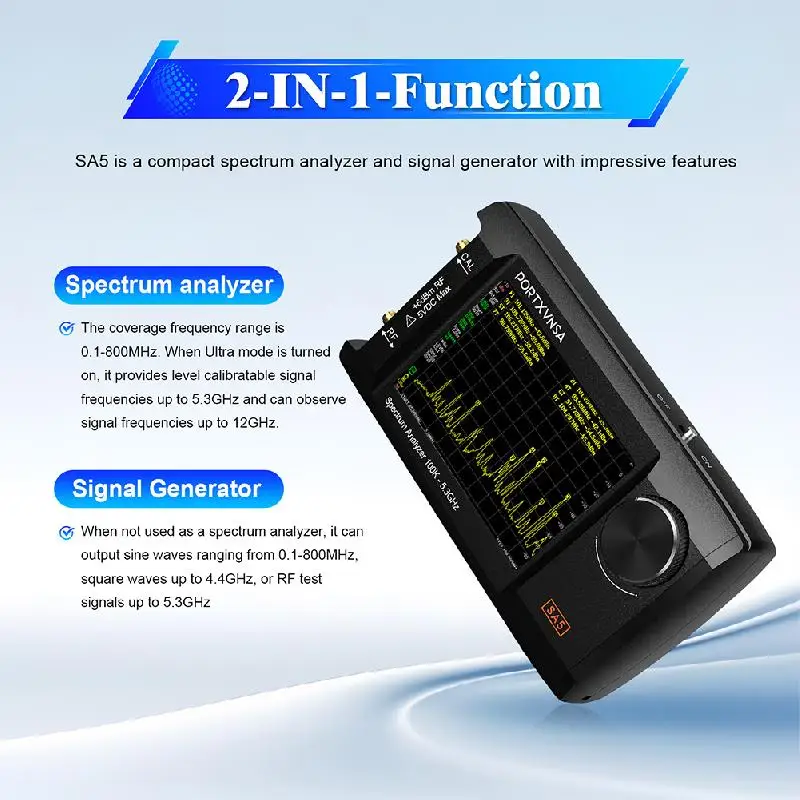

*3.【 2-in-1 Multifunction 】; The SA5 is a compact frequency harmonic analyzer and signal generator with multiple impressive features.
*4.【 Frequency Harmonic Analyzer 】The Xia Gai frequency range is 0.1-800MHz. When Ultra mode is turned on, it provides a level calibratable signal frequency up to 5.3GHz and can observe signal frequencies up to 12GHz. 【 Signal generator 】 When not used as a frequency analyzer, the signal generator can output sine waves up to 0.1-800MHz, square waves up to 4.4GHz, or RF test signals up to 5.3GHz.
*5.【 switchable resolution bandpass filter 】 The resolution bandpass filter can be switched between 200Hz and 850kHz
6.【 Optional LNA 】 Built in 20dB Low Noise Amplifier (LNA).
*7.【 Frequency Harmonic Display 】 Display up to 450 points and show 4 independently configured curves:

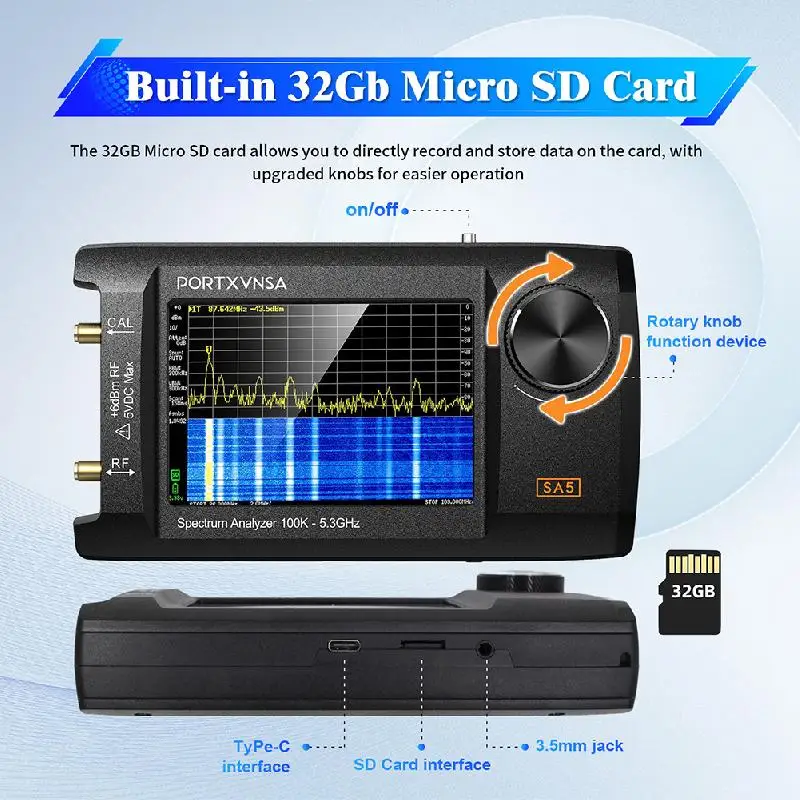

*8.【 Storage 】 MicroSD card slot for storing measurement data, settings, and screenshots.
*9.【 Input attenuator 】 The adjustable range of the step attenuator is 0dB to 31dB (not compatible with LNA)
*10.【 Calibration 】: Built in calibration signal generator, used for automatic self checking and input calibration,

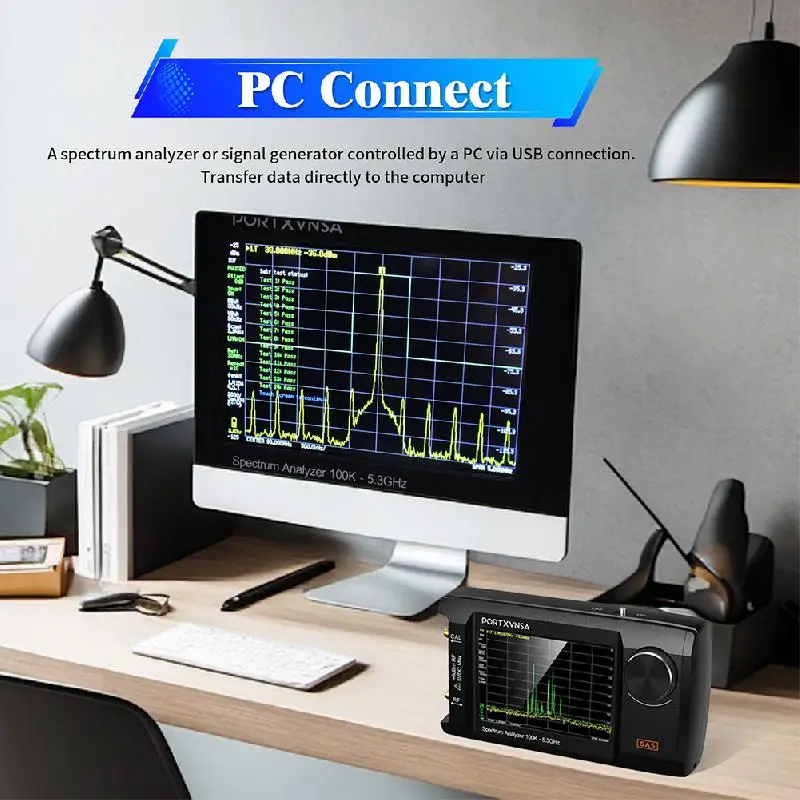

*11.【 PC Connection 】 Connected via USB, the function is a PC controlled frequency harmonic analyzer or signal generator. Convenient to transfer data directly to the computer.

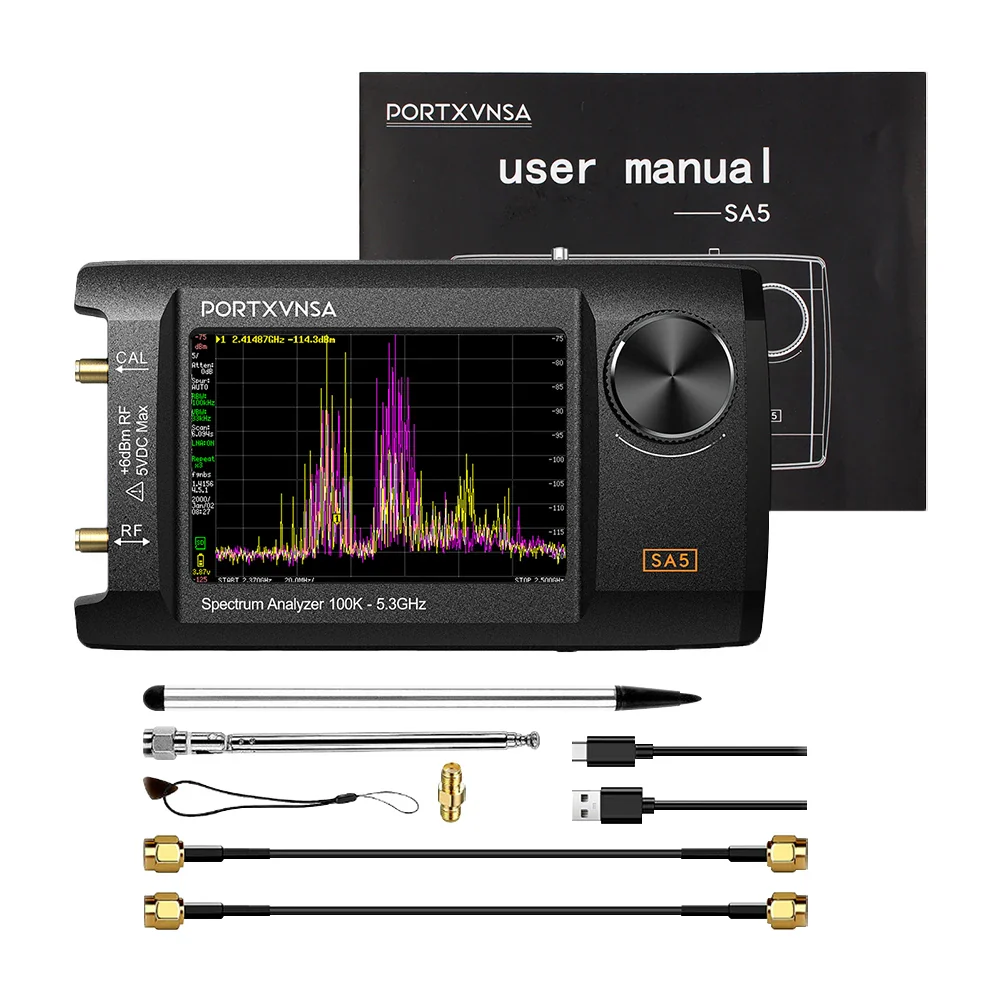

Package Includes:
Set 1:
Host (with 5000mAh battery, 4-inch display screen) x 1
USB Type-C data cable x1
30cm RG405 SMAJB2/SMAJB2 RF connection cable x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Hanging rope touch pad x1
Touch pen x1

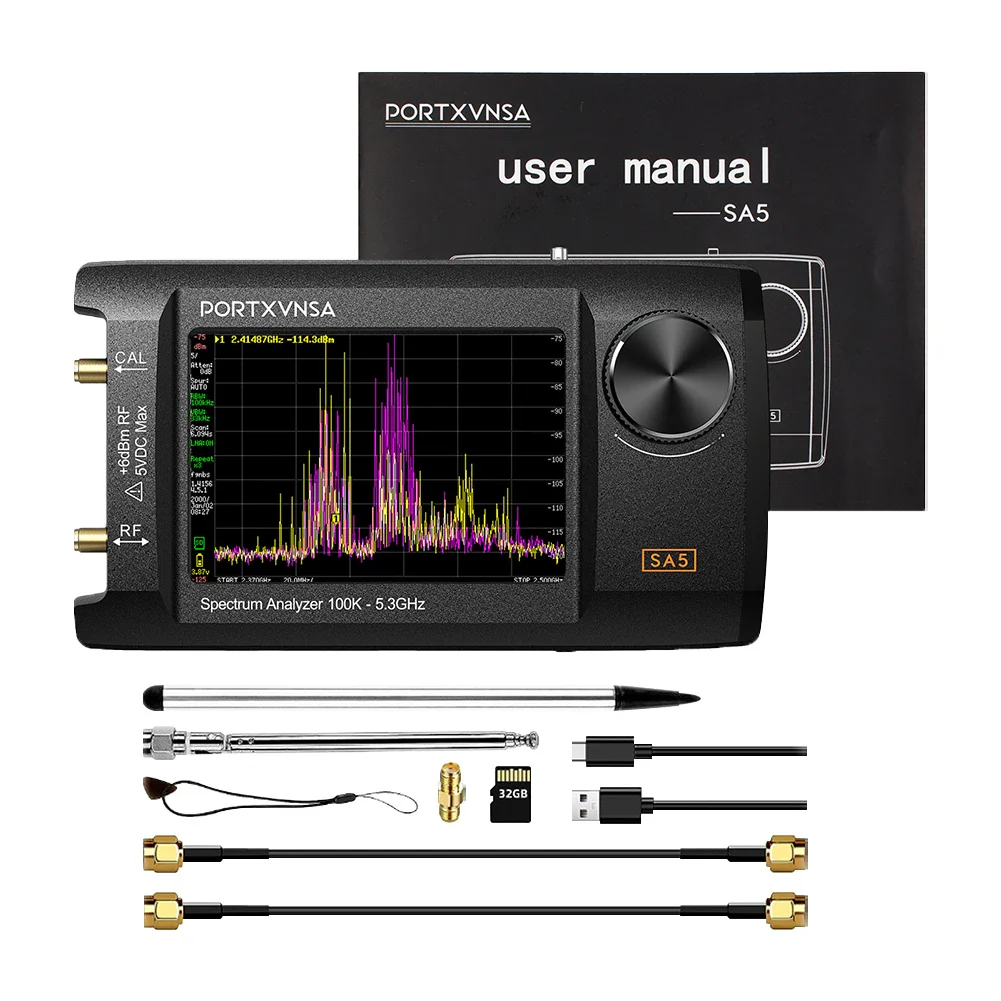

Set 2:
Host (with 5000mAh battery, 4-inch display screen) x 1
USB Type-C data cable x1
30cm RG405 SMAJB2/SMAJB2 RF connection cable x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Hanging rope touch pad x1
Touch pen x1
32GB MicroSD card (inserted into the host) x1
