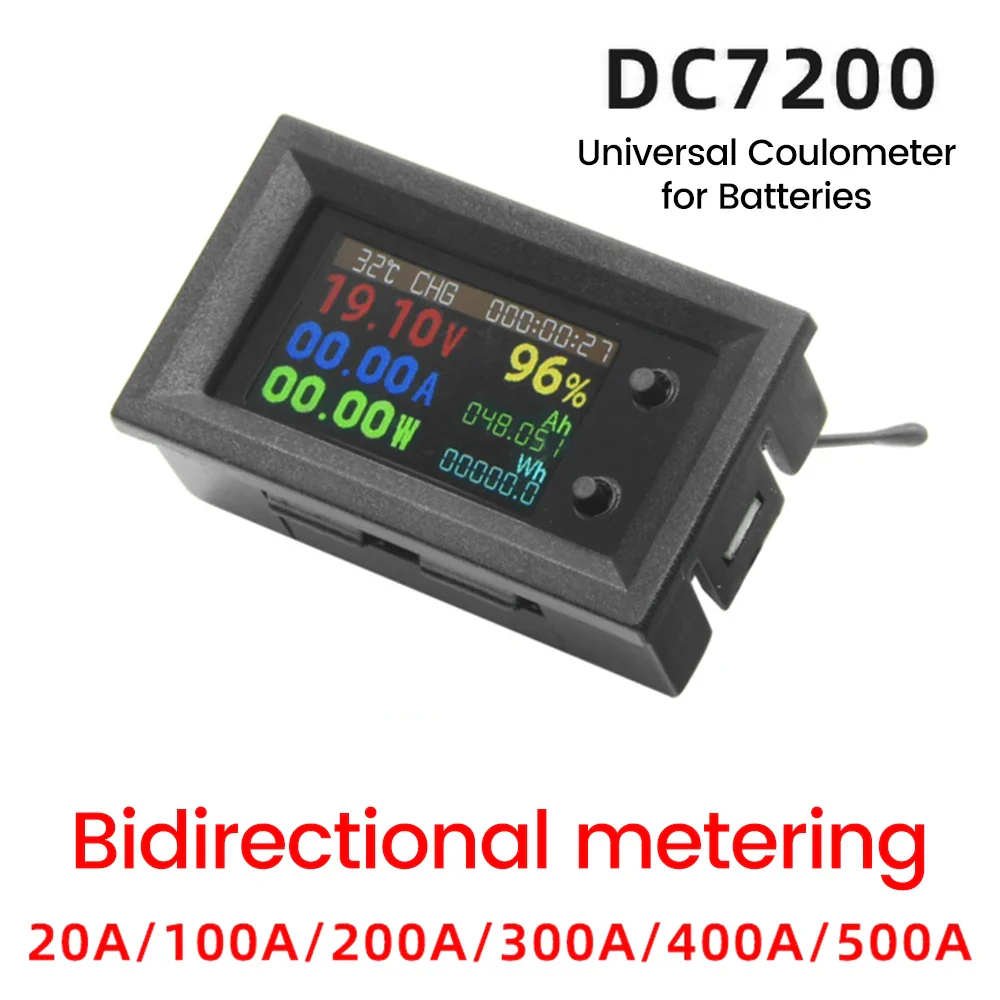

DC7~200V Digital Power Energy Voltmeter Ammeter Bi-Directional Metering Coulometer Battery Tester 9 in 1 Multi-Function Tester
Features:
1. High-definition IPS LCD color screen, clear display, accurate measurement.

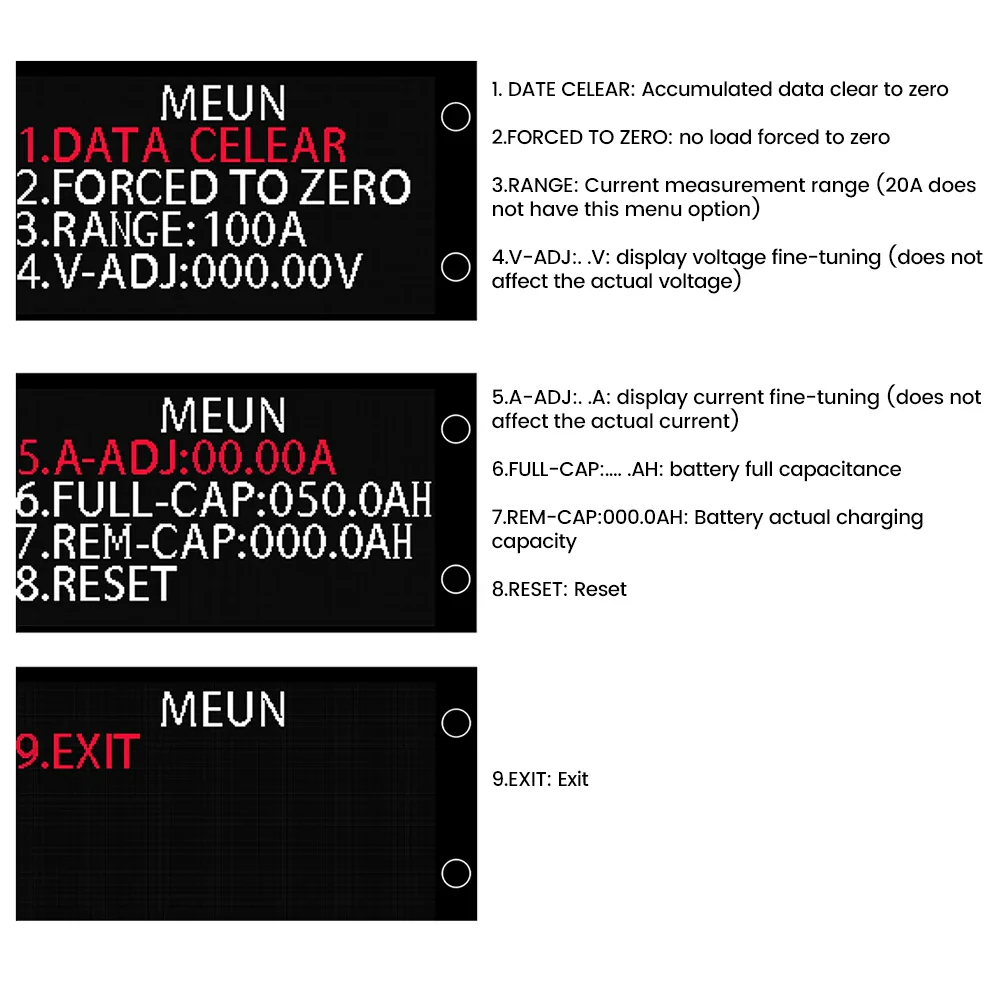

2.Support zeroing of accumulated data and zeroing of no load.
3. Support voltage display fine-tuning, current display fine-tuning.
4. Support the percentage based on the capacity setting (need to manually set the full capacity).

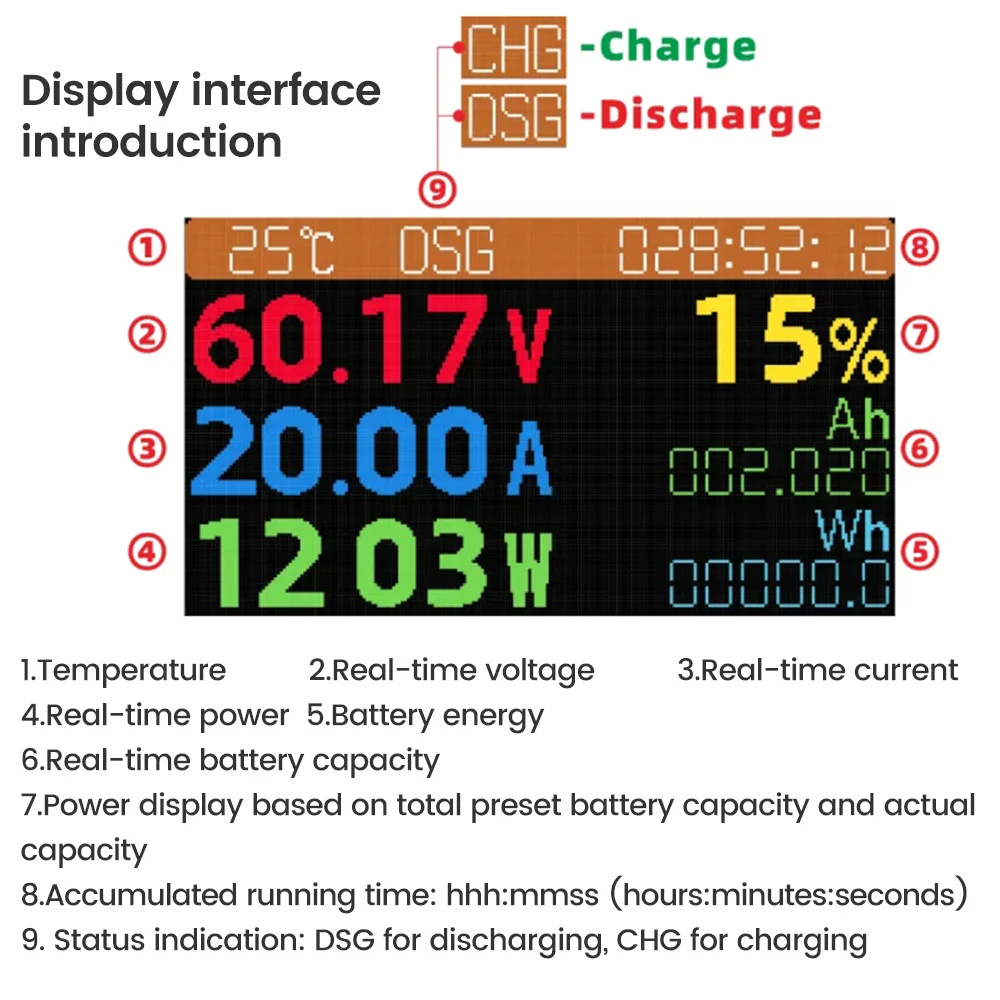

5. It can simultaneously measure voltage, current, power, real-time battery capacity, battery energy, temperature, time, percentage power, and display charging and discharging status.
Parameter:
Input/output interface:

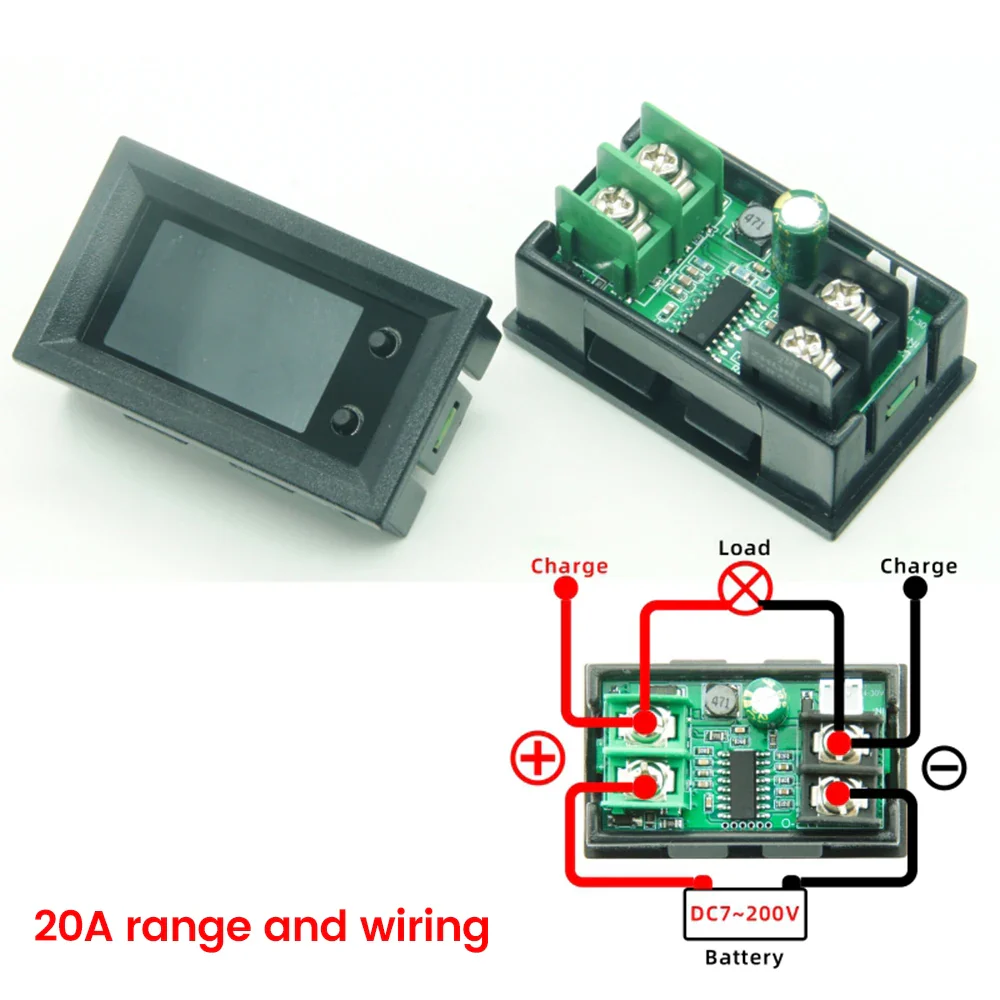

ā 20A high current 2P terminal block

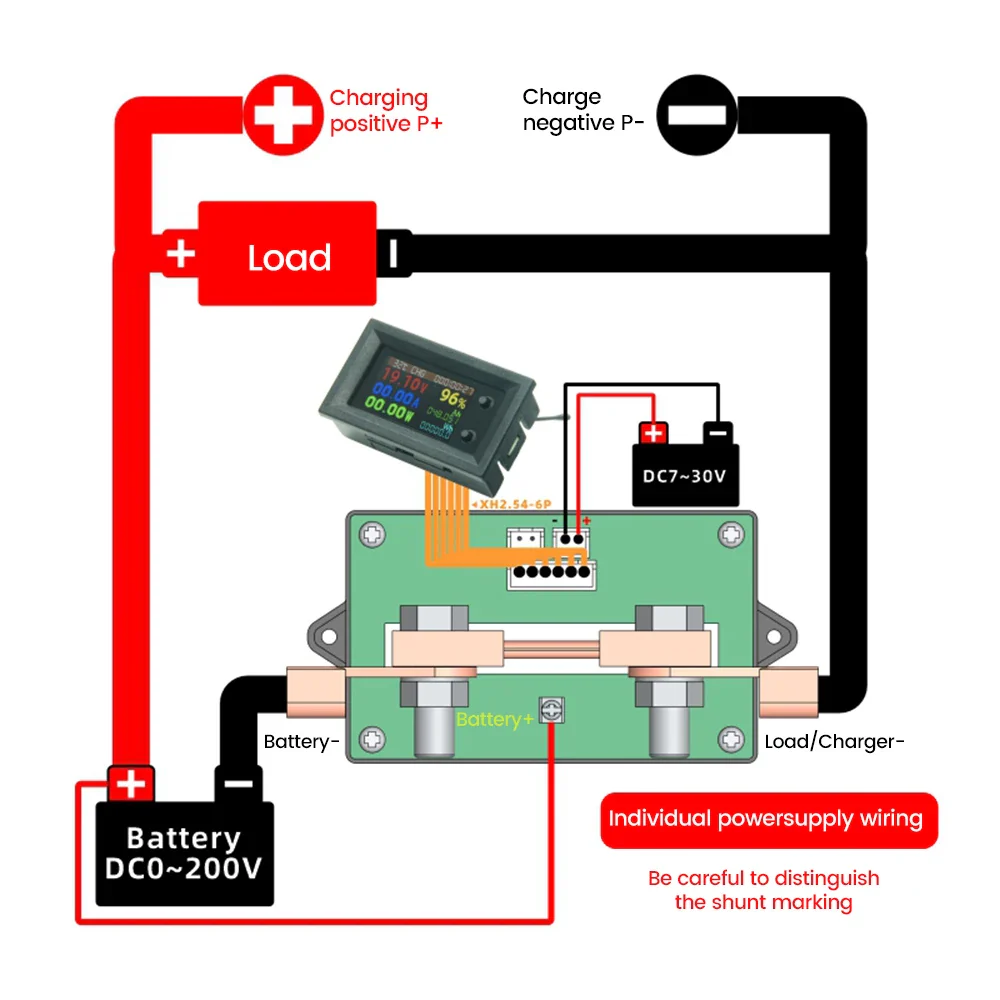

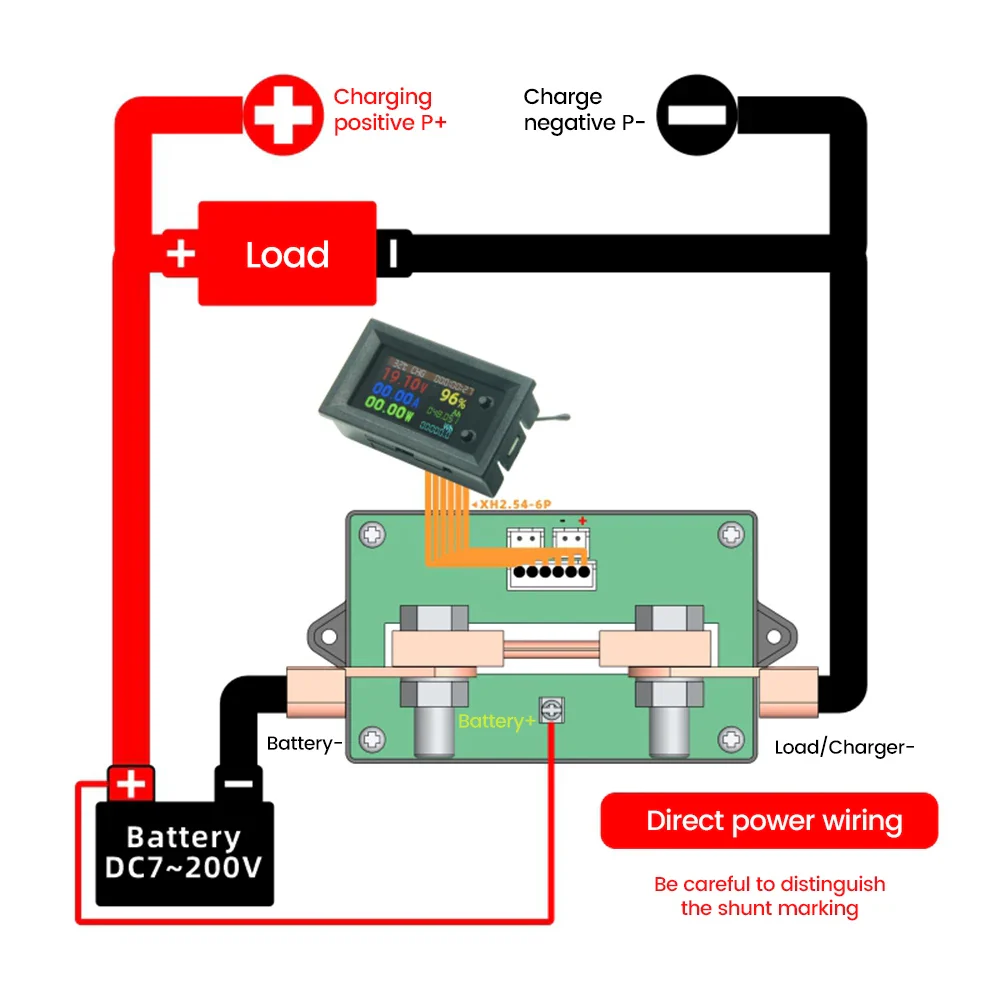

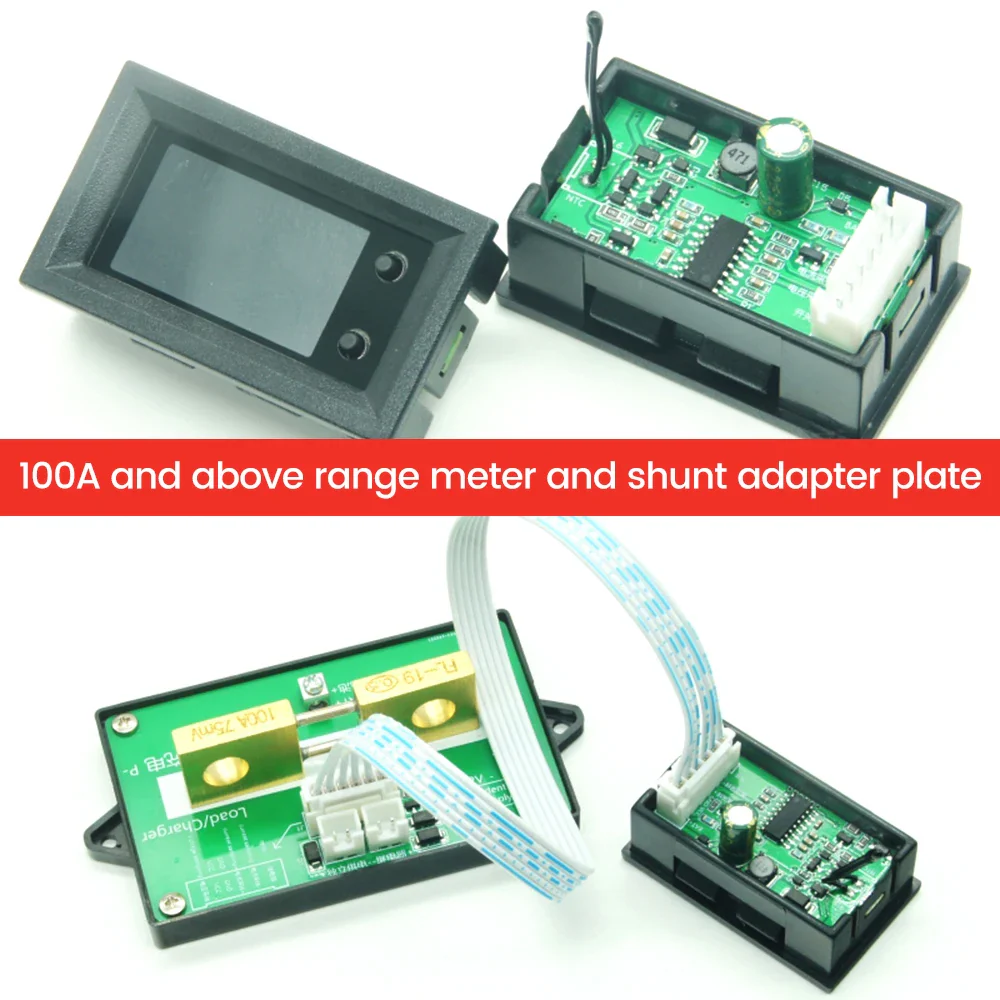

ā”100A/200A/300A/400A/500A by shunt adapter board wiring
Instrument operating voltage: DC7~200V
Voltage measurement range: DC7~200V
Current measurement range:

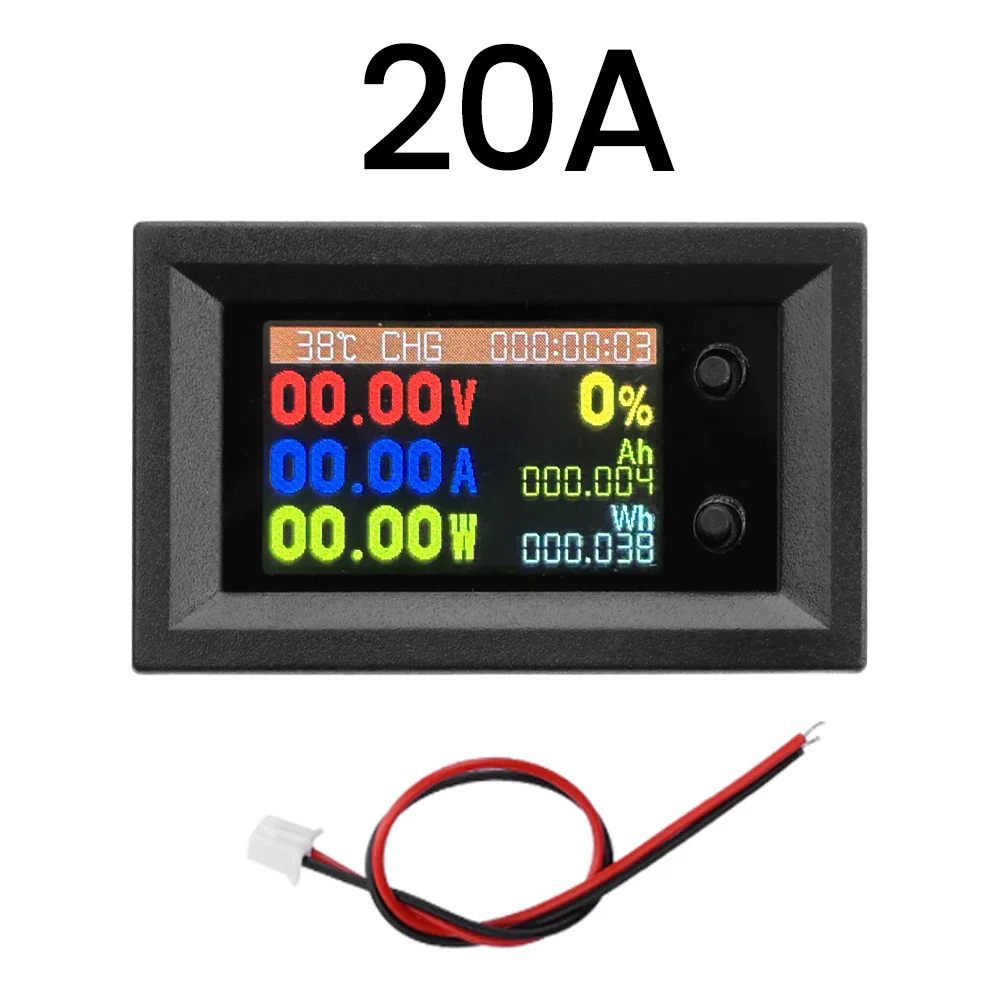

ā 20.00A (direct measurement, without external shunt)

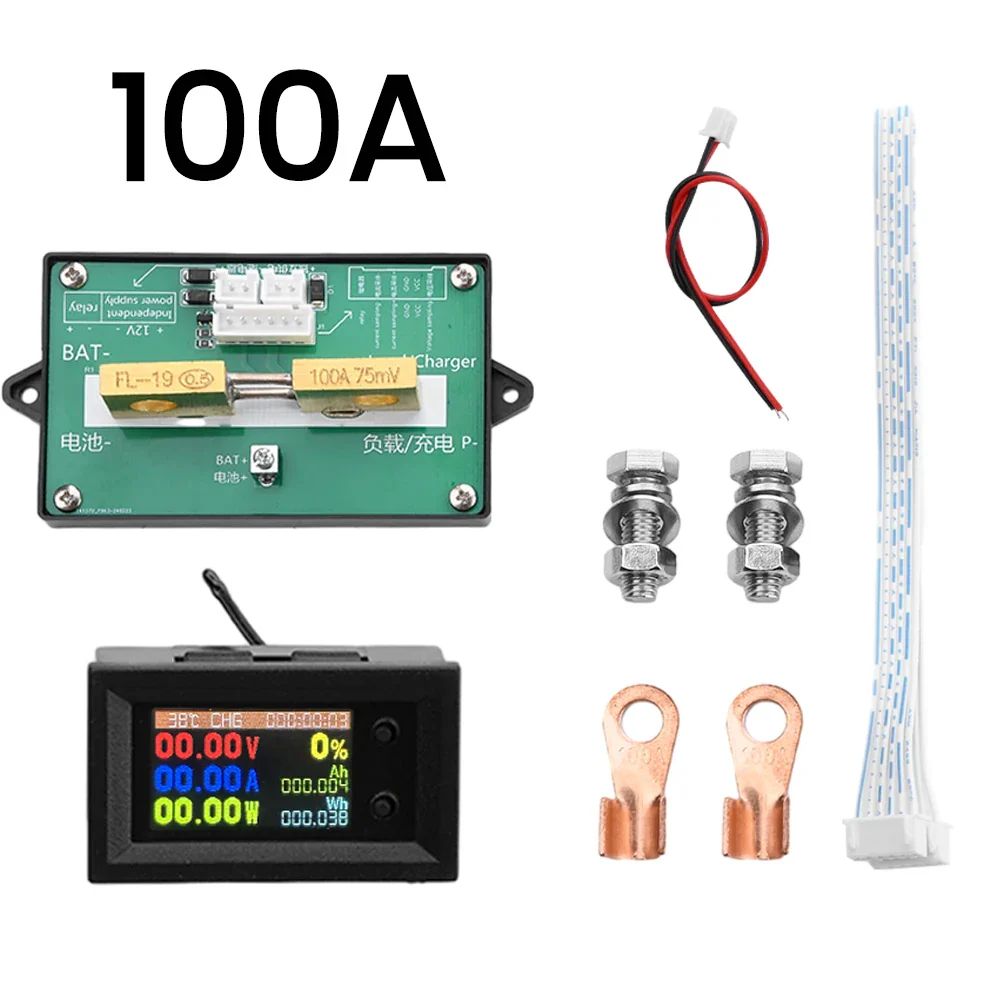

ā” 100.0A (need to connect the shunt adapter plate)
ā¢200.0A (need to connect the shunt adapter plate)

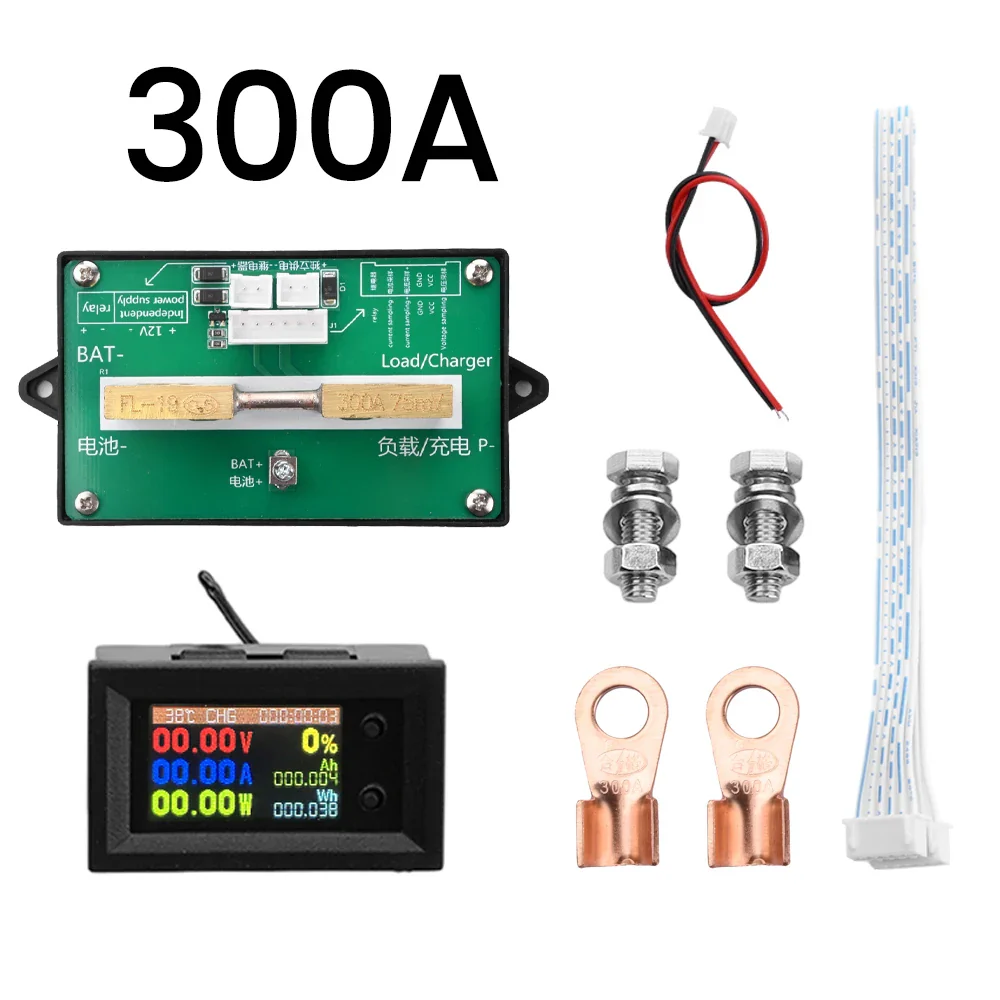

ā£300.0A (need to connect the shunt adapter plate)
ā¤ 400.0A (Shunt adapter plate required)

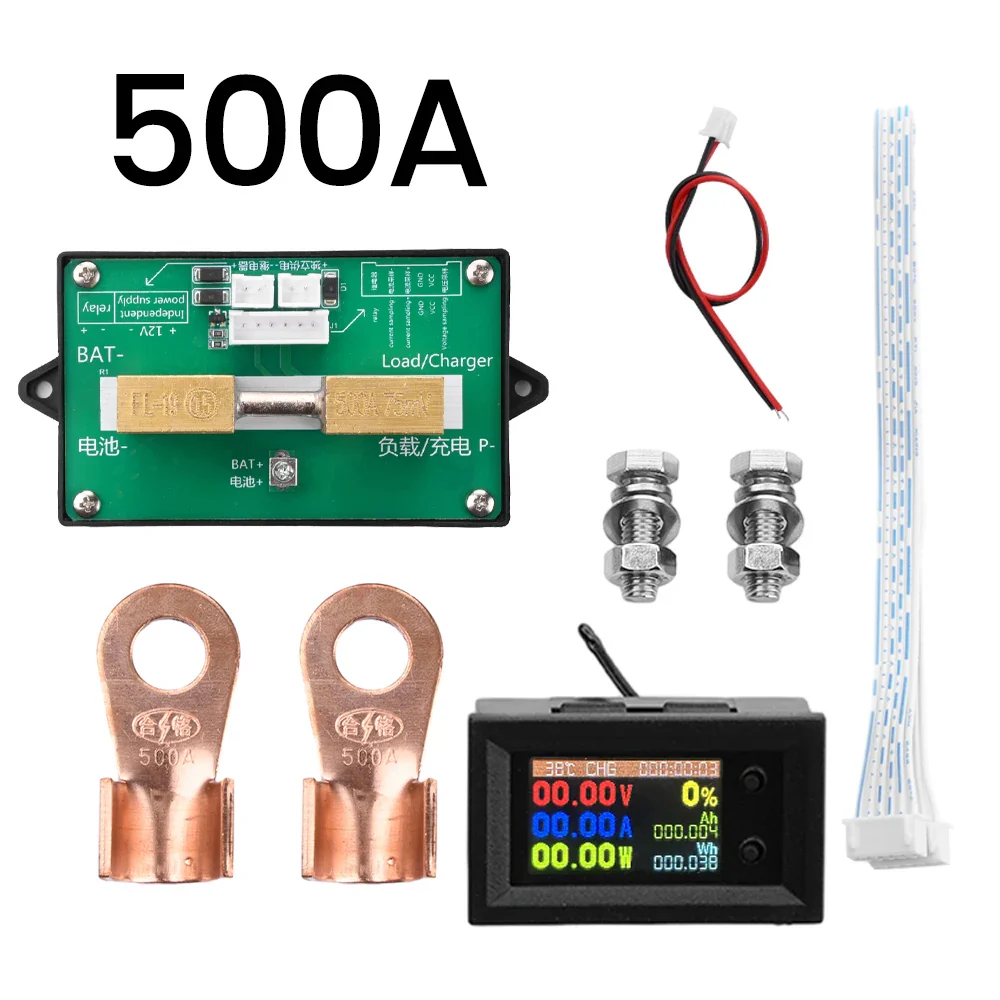

ā„500.0A (Shunt adapter plate required)
Power measurement range: 00.00W~1.000KW~999.9KW
Capacity measurement range: 0~999.999Ah
Power measurement range: 0~99999.9Wh
Temperature measurement range: 0~99ā
Time measurement rangeļ¼0~999:59:59(hoursļ¼minutesļ¼seconds)
Bi-directional current indication: Support, DSG indicates discharge, CHG indicates charge.
Data Zeroing: Support
No-load zeroing: support
Voltage display fine-tuning: support
Current display fine-tuning: support
Percentage power display: support the percentage based on the capacity setting (need to manually set the full power capacity)
Meter mounting aperture: 45Ć26mm

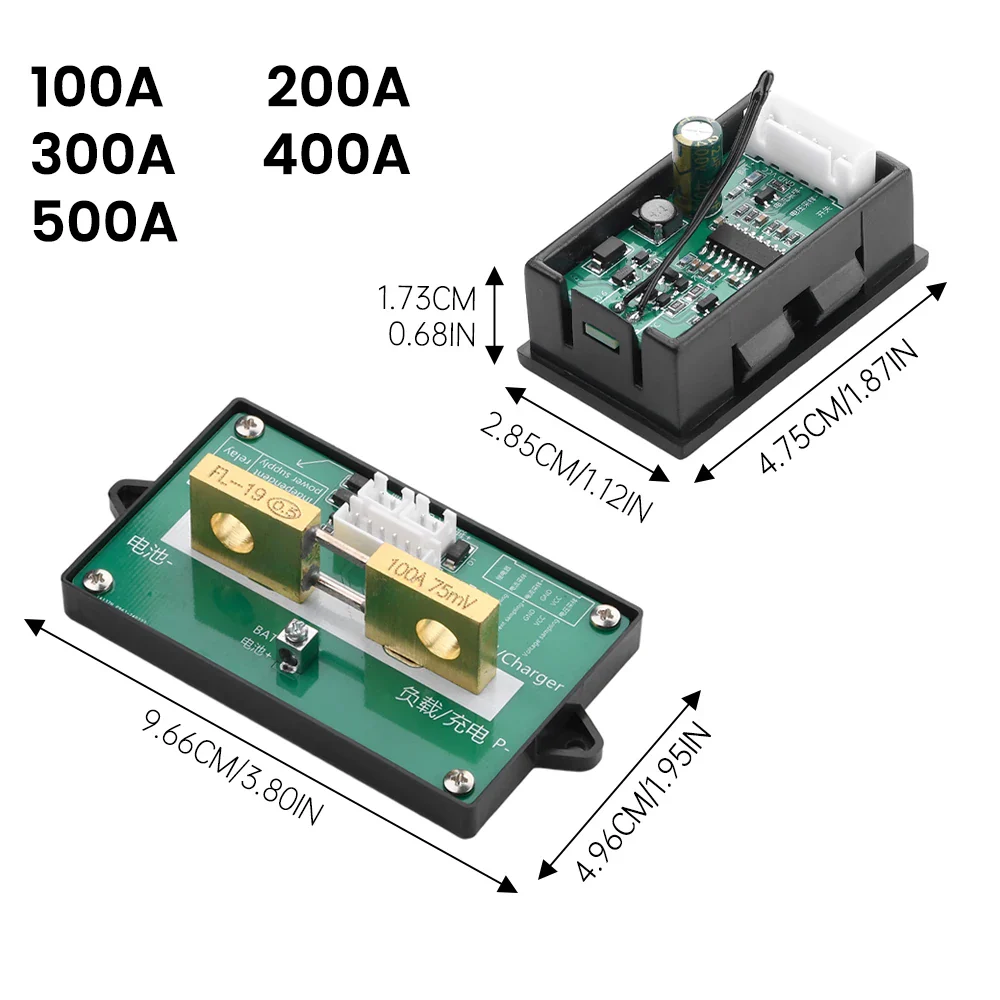

Product size: 47.59Ć28.67Ć25.33mm
Profile Link:
https://mp.weixin.qq.com/s?__biz=MzI2MDQzNzg2Mw==&mid=2247485537&idx=1&sn=9640a99d7c58345ad7a5f8b4d34a1b01&chksm=ea68ea69dd1f637f298f54f6f32ec12e1856d3b714b1e8343cad03d8484a48a464448048fbef&token=1722952996&lang=zh_CN#rd

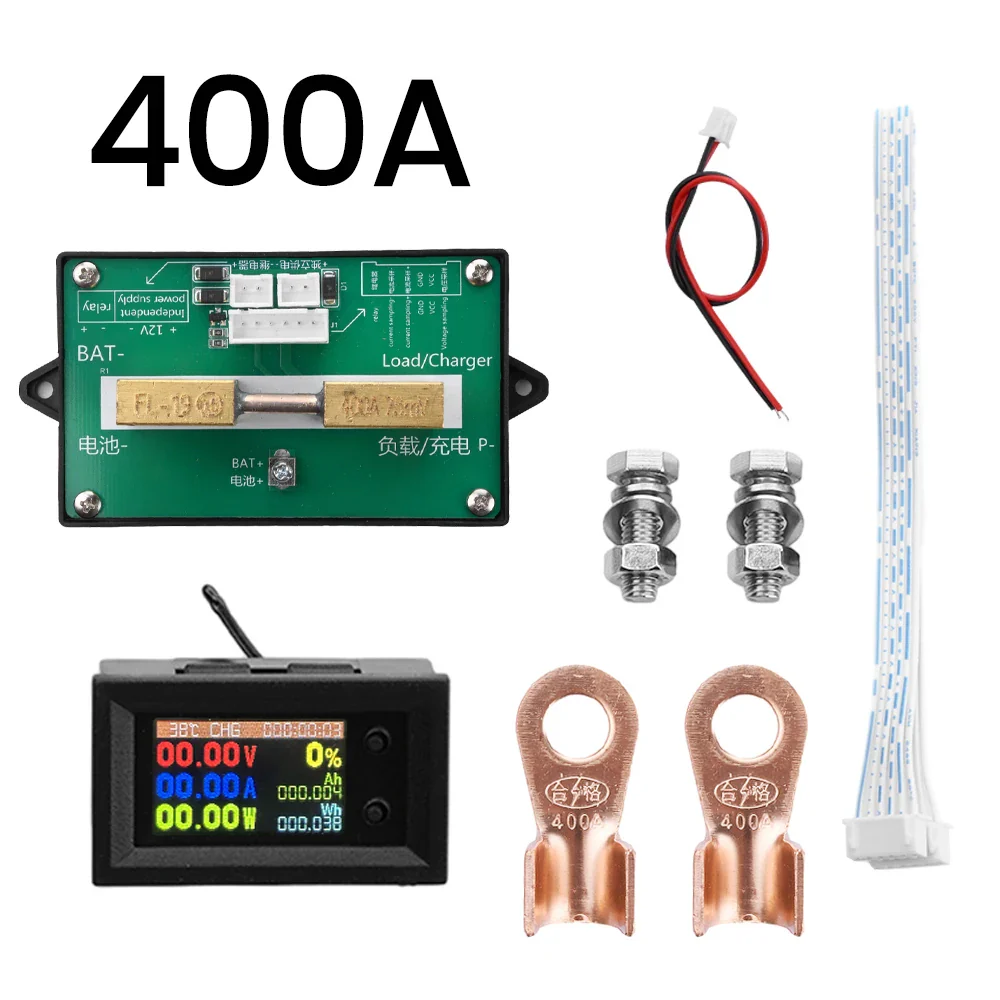

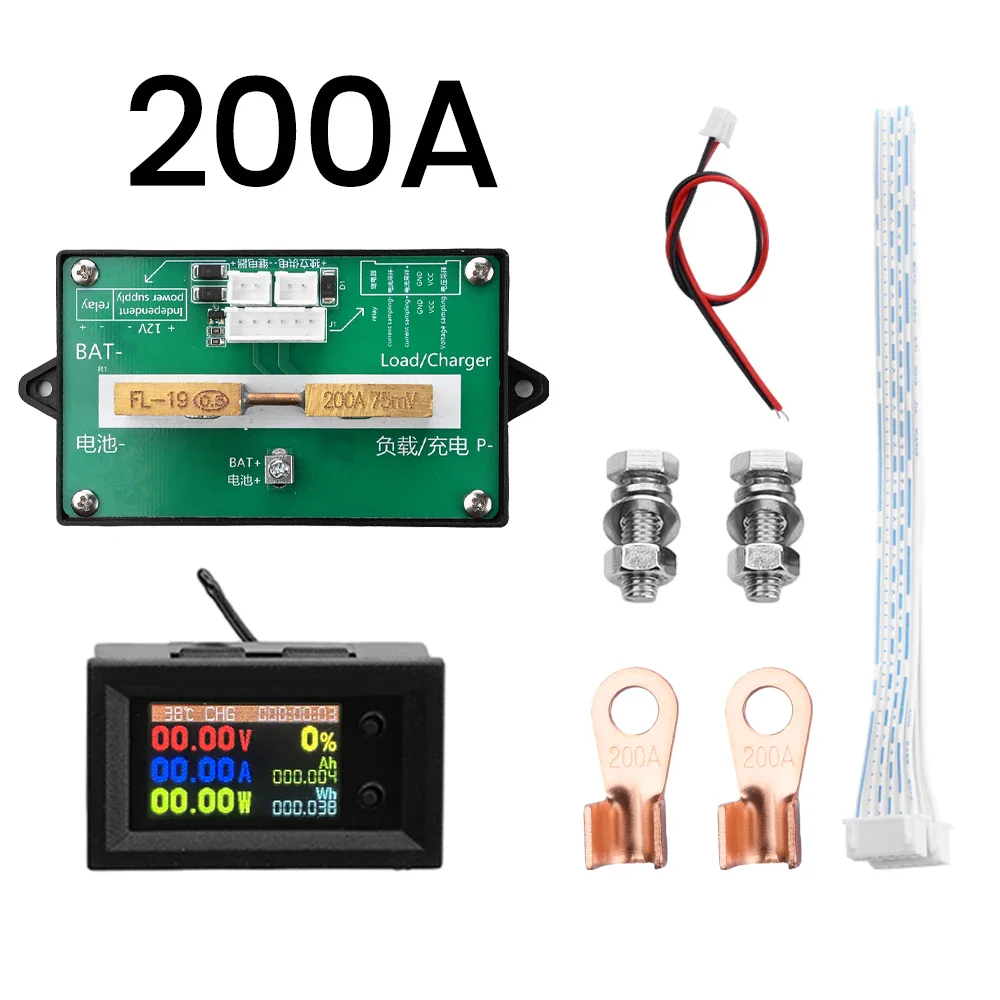

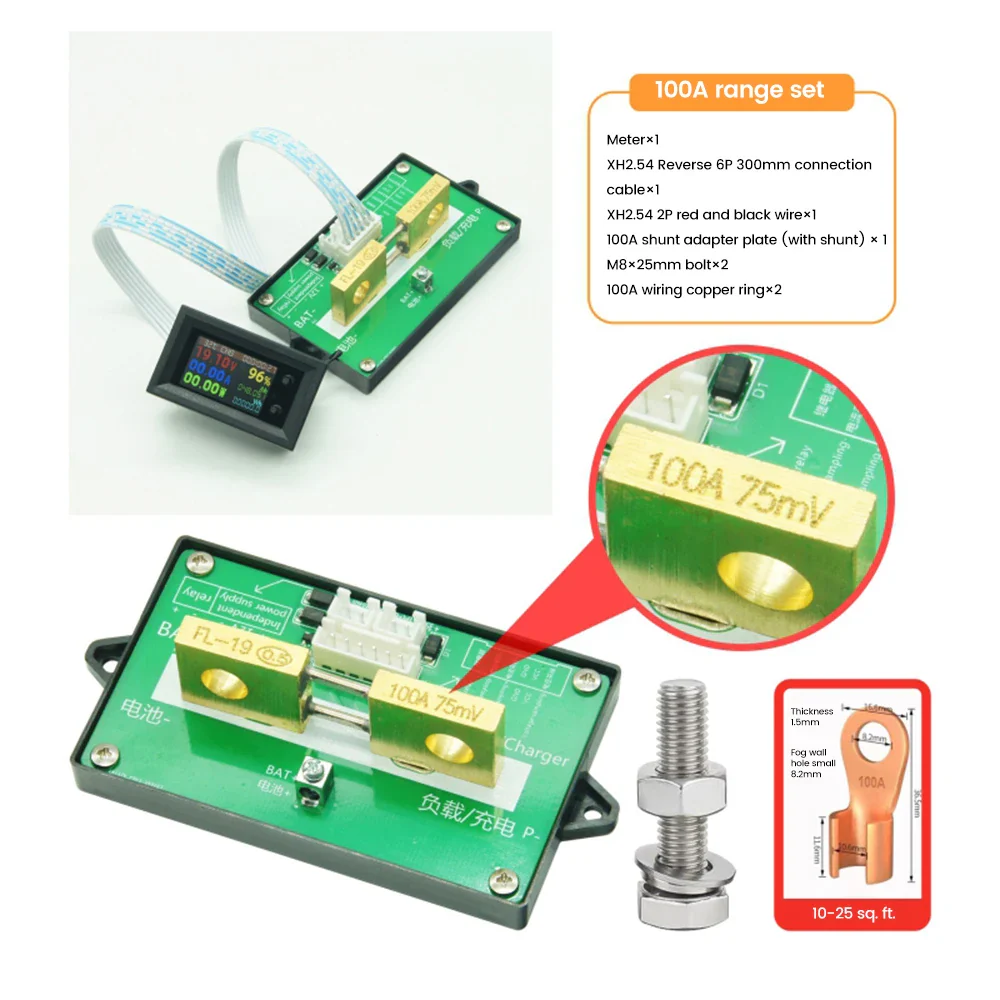

Package include:
Meter x1
XH2.54 Reverse 6P 300mm connection cable x1
XH2.54 2P red and black wire x1

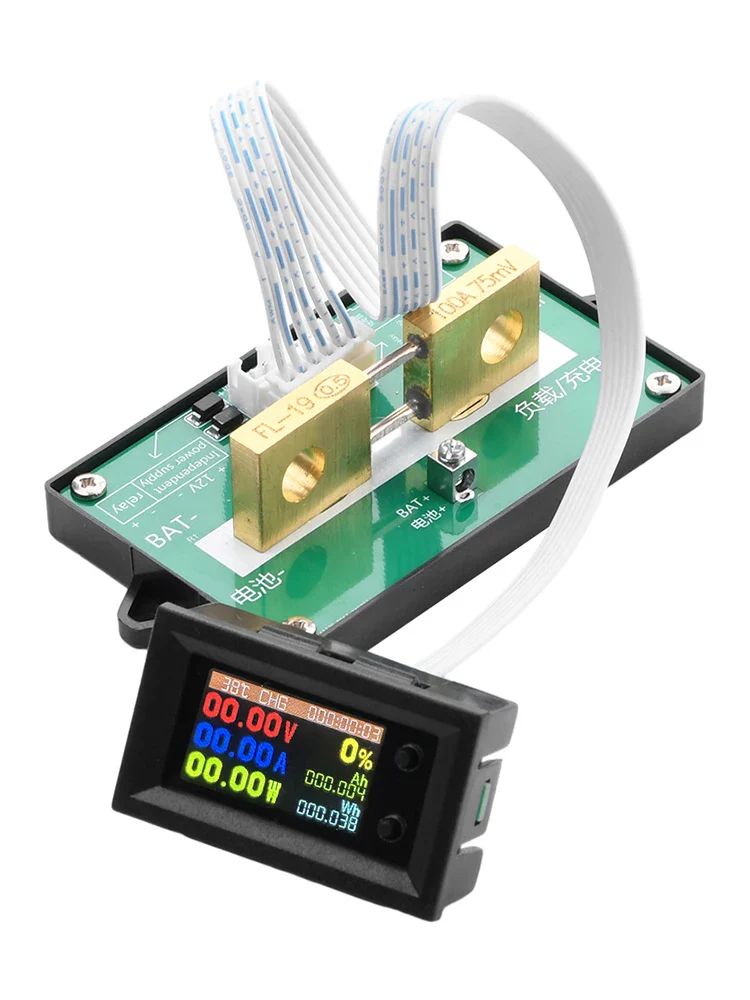

Splitter adapter plate (with splitter) x1
M8x25mm bolt x2
Wiring copper ring x2
