GA800 Active Loop Antenna 10KHz-159MHz HF Short Wave Small Loop Antenna for Radio Receiver Indoor Use Tescun Malahiteam SDR

GA800 Active Loop Antenna 10KHz-159MHz HF Short Wave Small Loop Antenna for Radios Indoor Use

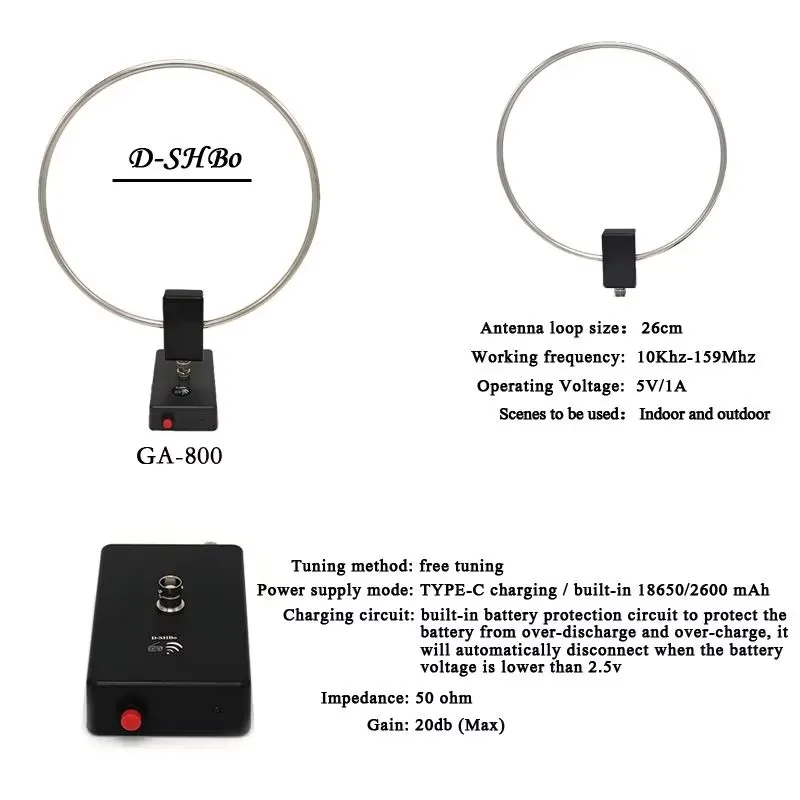

Specification:

Antenna loop size: 260mm/10.2" (inner diameter)
Control Box: 107 x 65 x 26mm/4.2 x 2.6 x 1"
Working frequency: 10KHz-159MHz
Operating temperature: -10°C to +60°C
Working voltage: 5V/1A
Power supply mode: Type C charging / built-in 18650/2600mAh
Impedance: 50 ohms
Gain: 20db (max)
Charging circuit: Built-in battery protection circuit to prevent over-discharge and over-charging of the battery. When the battery voltage is lower than 2.5V, it will automatically disconnect
Material: Metal+ABS
Antenna diameter: 260mm

Tips:

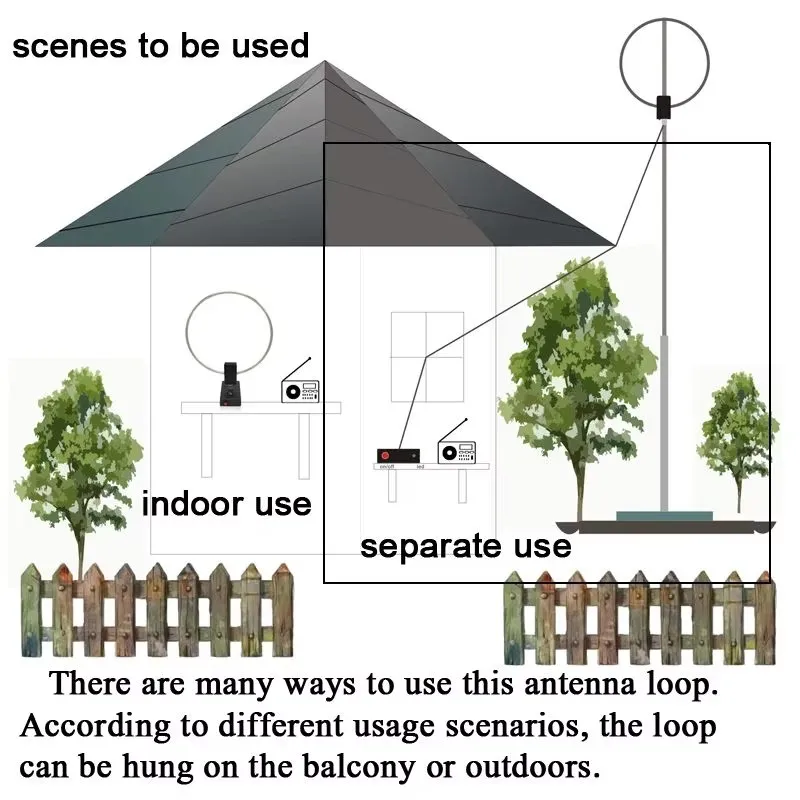

The outdoor part of this antenna is not waterproof.If you need to place it outdoors for along time, you need to take waterproof measures by yourself.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

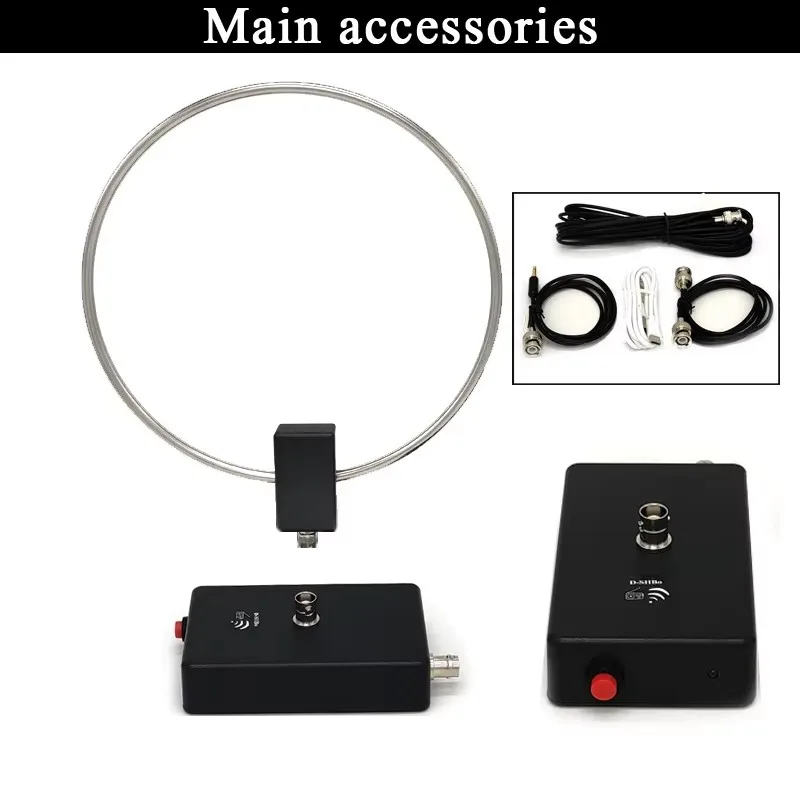

Packages:
1 x Antenna with control box
1 x Manual
1 x BNC cable (5m/16.4ft)
1 x Power cord (Type-c)
2 x Output cables (BNC-3.5*1m/3.3ft; BNC-BNC*1m/3.3ft)
1 x Adapter (BNC-SMA)
