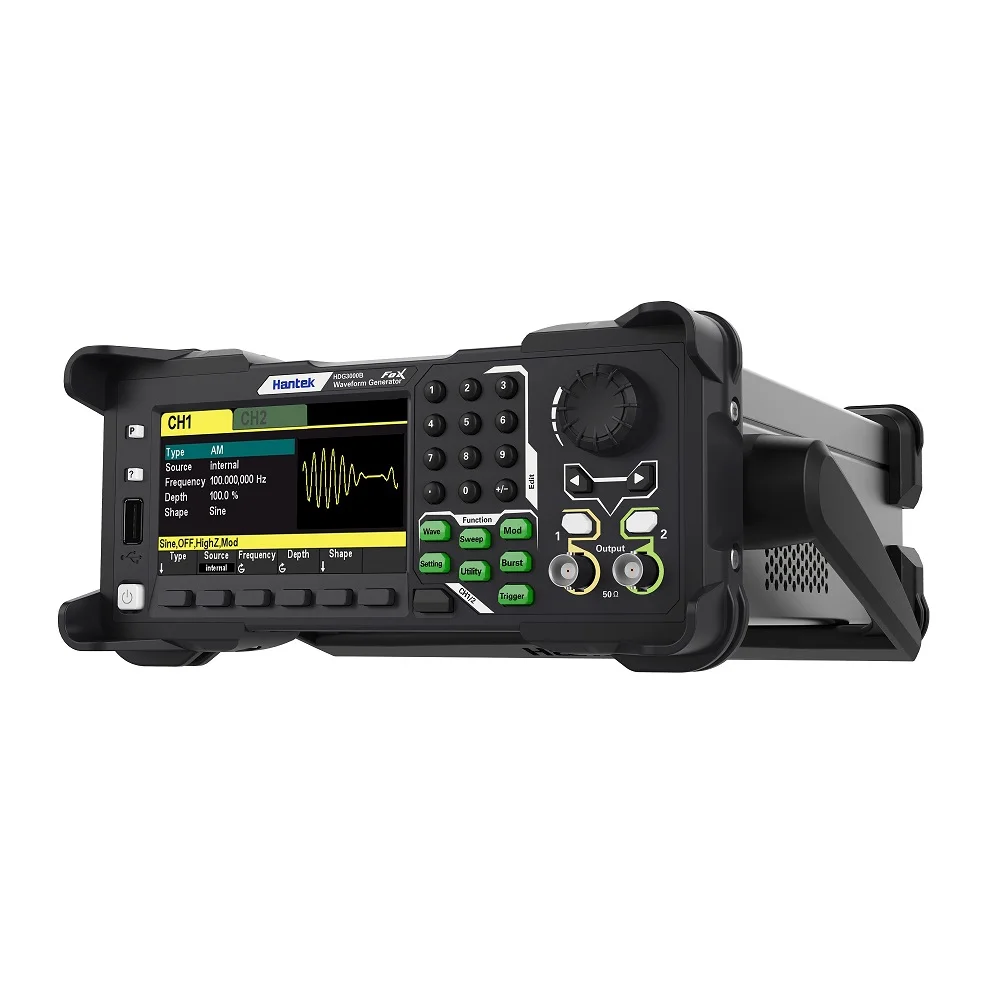

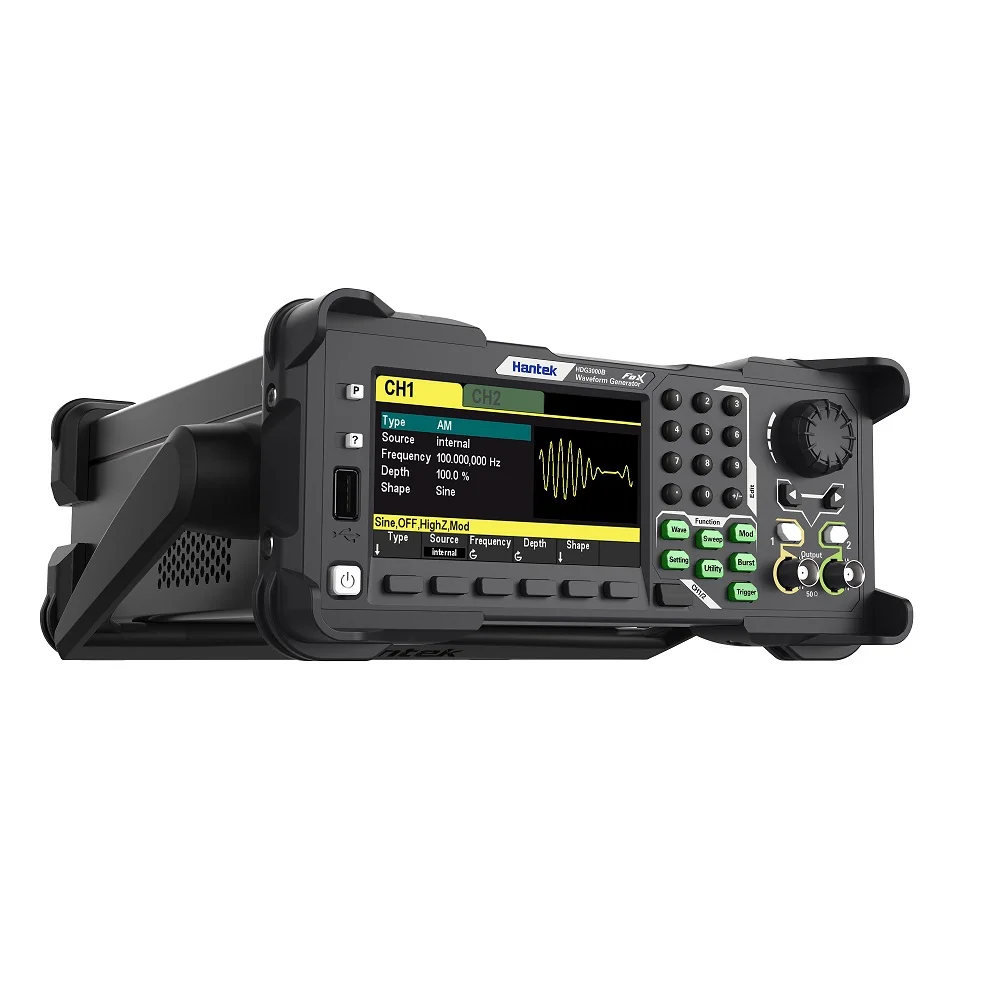

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter

Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meter

Hantek HDG3000B sets Digital Arb Waveform Generator 2CH DDS Frequency Meter 300MSa/s Function Signal GeneratorĀ

Features

1.HDG3000B series integratesĀ 5 functionsĀ ofĀ arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDSĀ direct digital frequency synthesis technology.

3.Up toĀ 300MSa/sĀ sampling rate,16bitsĀ vertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up toĀ 2MĀ ensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

  • Frequency range: 1Ī¼Hz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.

  • Up to 300MSa/s sampling rate, no distortion of analog waveforms.

  • 16-bit vertical resolution ensures the accuracy of waveform amplitude.

  • Equip with dual channels with equal performance, equivalent to two independent signal sources.

  • The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

  • A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.

  • Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

  • 1Ī¼Hz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ī©, the amplitude range is 1mV~10Vpp.

  • Built-in 80MHz high-resolution frequency meter.

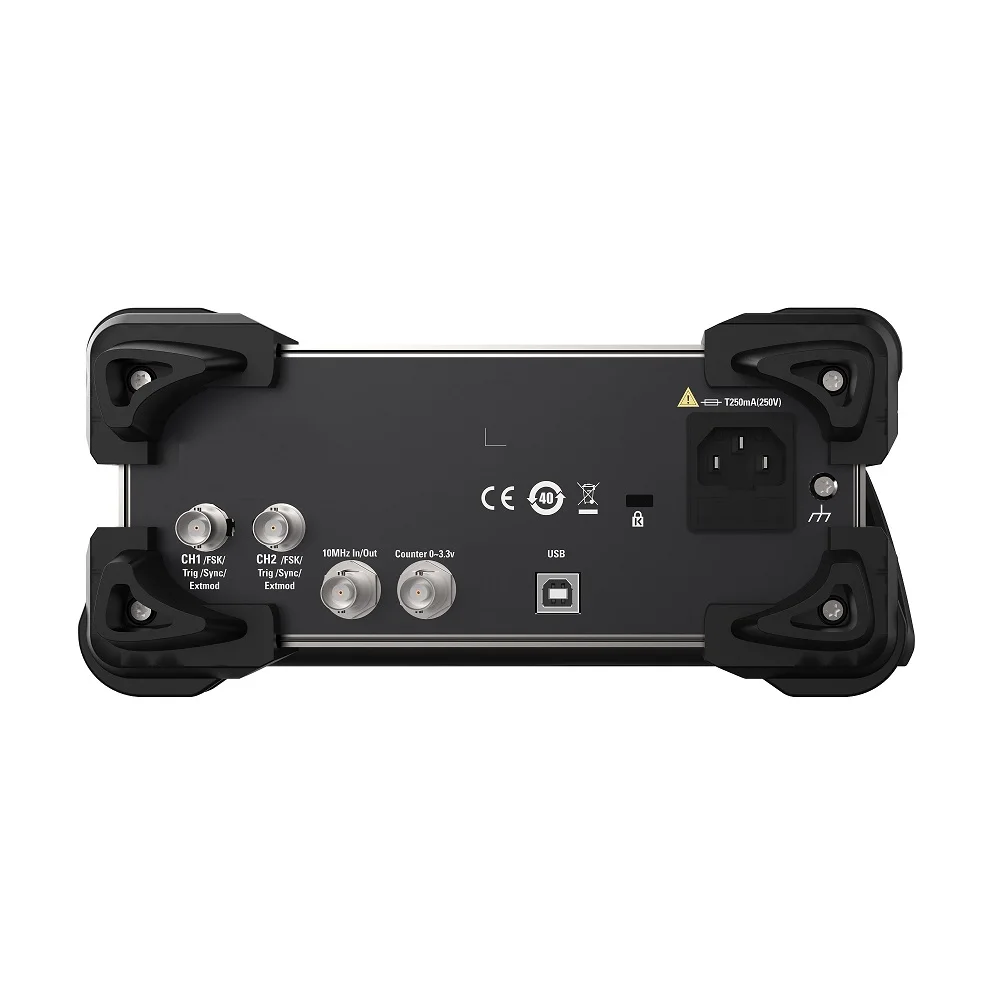

  • Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).

  • More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

  • Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Ā

Ā

Ā

Select Ships From
Select Color
From $73.07

Original: $243.57

-70%
Hantek HDG3102B 5 in 1 Arbitrary Waveform Generator Function Generator + Pluse Generator + Harmonic Generator + Frequency Meterā€”

$243.57

$73.07

Product Information

Shipping & Returns

Description

Hantek HDG3000B sets Digital Arb Waveform Generator 2CH DDS Frequency Meter 300MSa/s Function Signal GeneratorĀ

Features

1.HDG3000B series integratesĀ 5 functionsĀ ofĀ arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDSĀ direct digital frequency synthesis technology.

3.Up toĀ 300MSa/sĀ sampling rate,16bitsĀ vertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up toĀ 2MĀ ensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

  • Frequency range: 1Ī¼Hz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.

  • Up to 300MSa/s sampling rate, no distortion of analog waveforms.

  • 16-bit vertical resolution ensures the accuracy of waveform amplitude.

  • Equip with dual channels with equal performance, equivalent to two independent signal sources.

  • The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

  • A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.

  • Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

  • 1Ī¼Hz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ī©, the amplitude range is 1mV~10Vpp.

  • Built-in 80MHz high-resolution frequency meter.

  • Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).

  • More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

  • Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.
