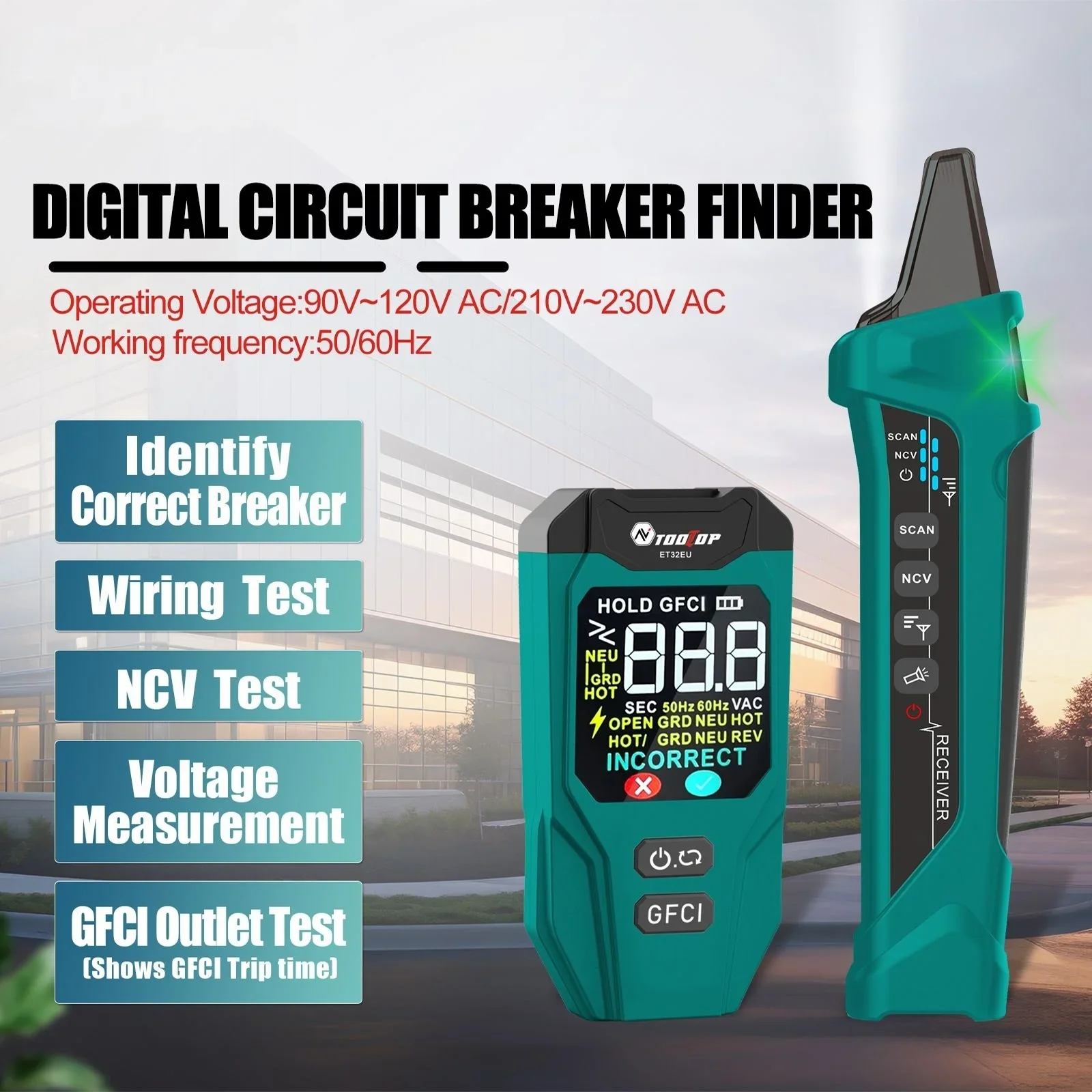

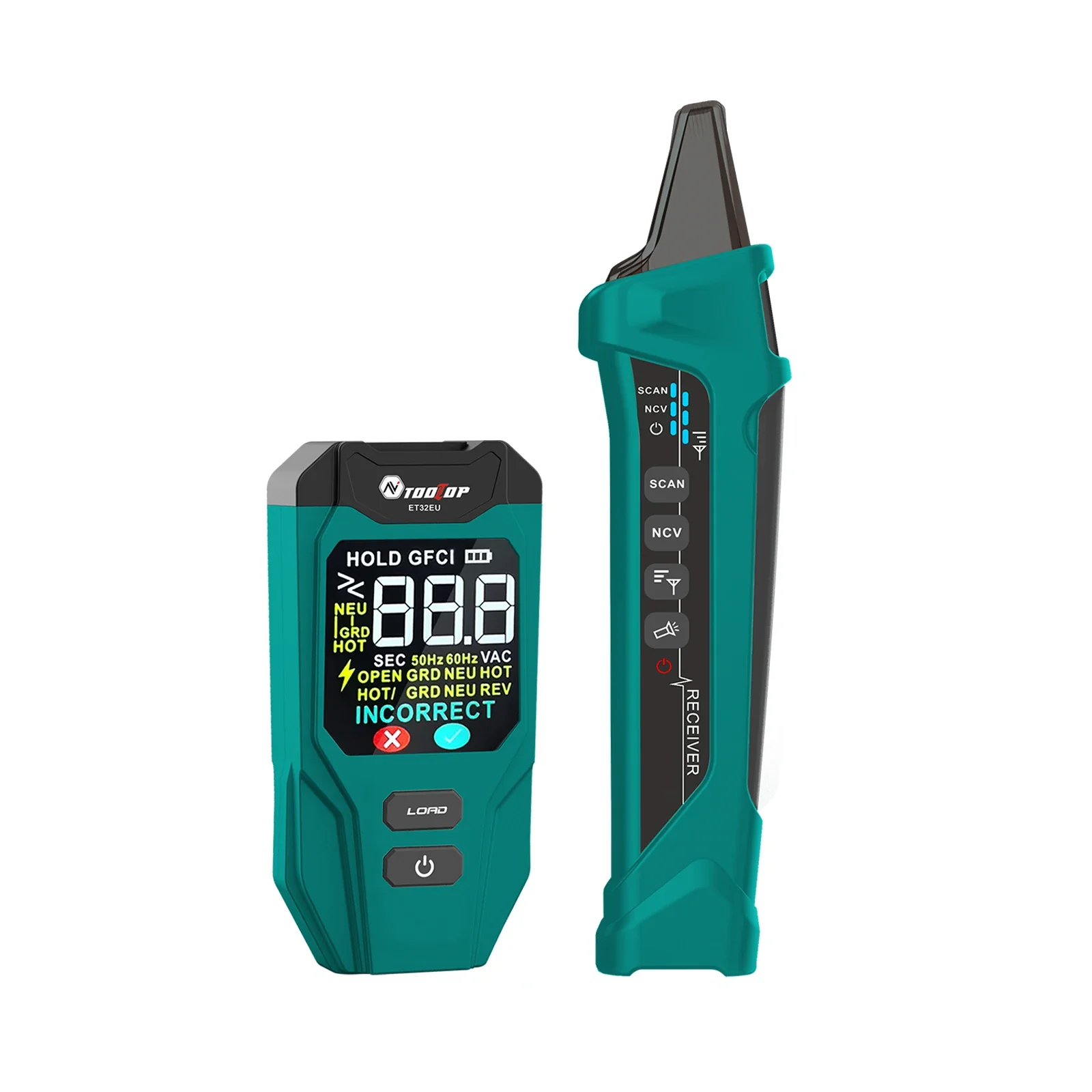

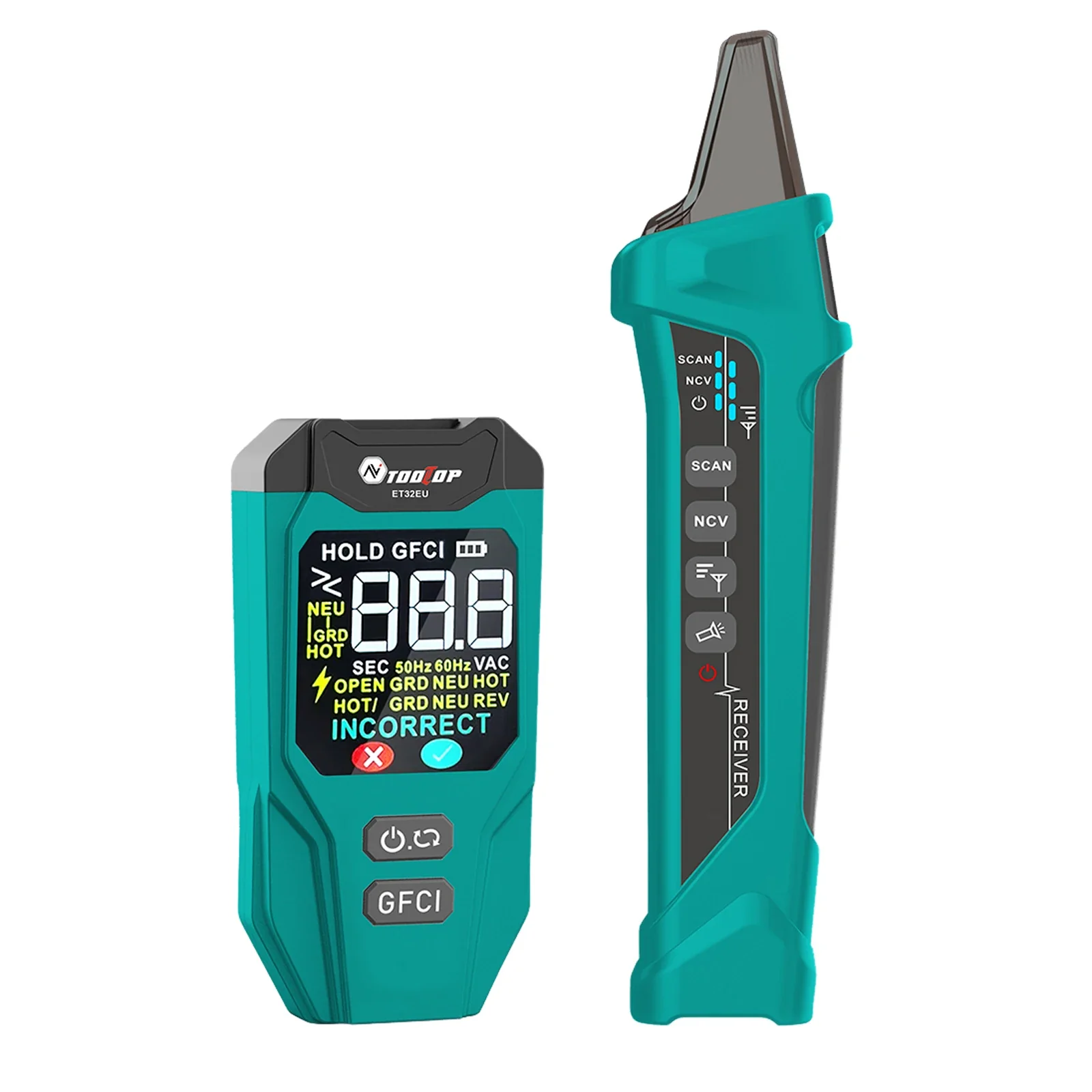

TOOLTOP ET32 Digital Circuit Breaker Finder & Socket Tester with GFCI Trip Time Display EU UK US Plug Leakage Current Detector

Digital Circuit Breaker Finder & Socket Tester with GFCI Trip Time Display, AI-Powered Precision Breaker Tracker with Rechargeable Battery, VA Color LCD, NCV & Adjustable Sensitivity(Green)(US Plug)

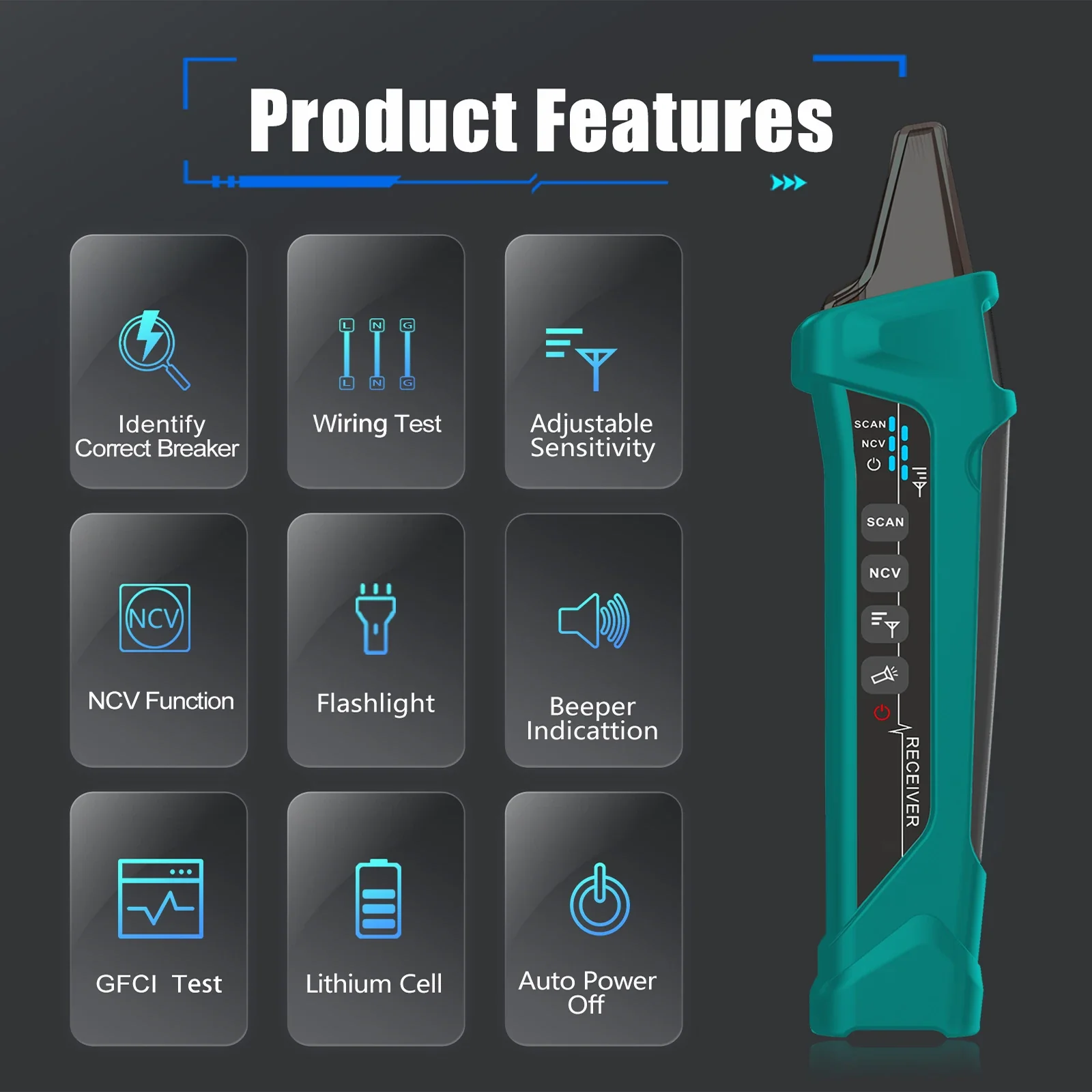

Key Features：
【AI-Powered Precision Tracking】: Features an advanced chip with Intelligent AI Mode that significantly improves efficiency and accuracy. Easily locate the correct circuit breaker associated with any outlet or fixture without guesswork.

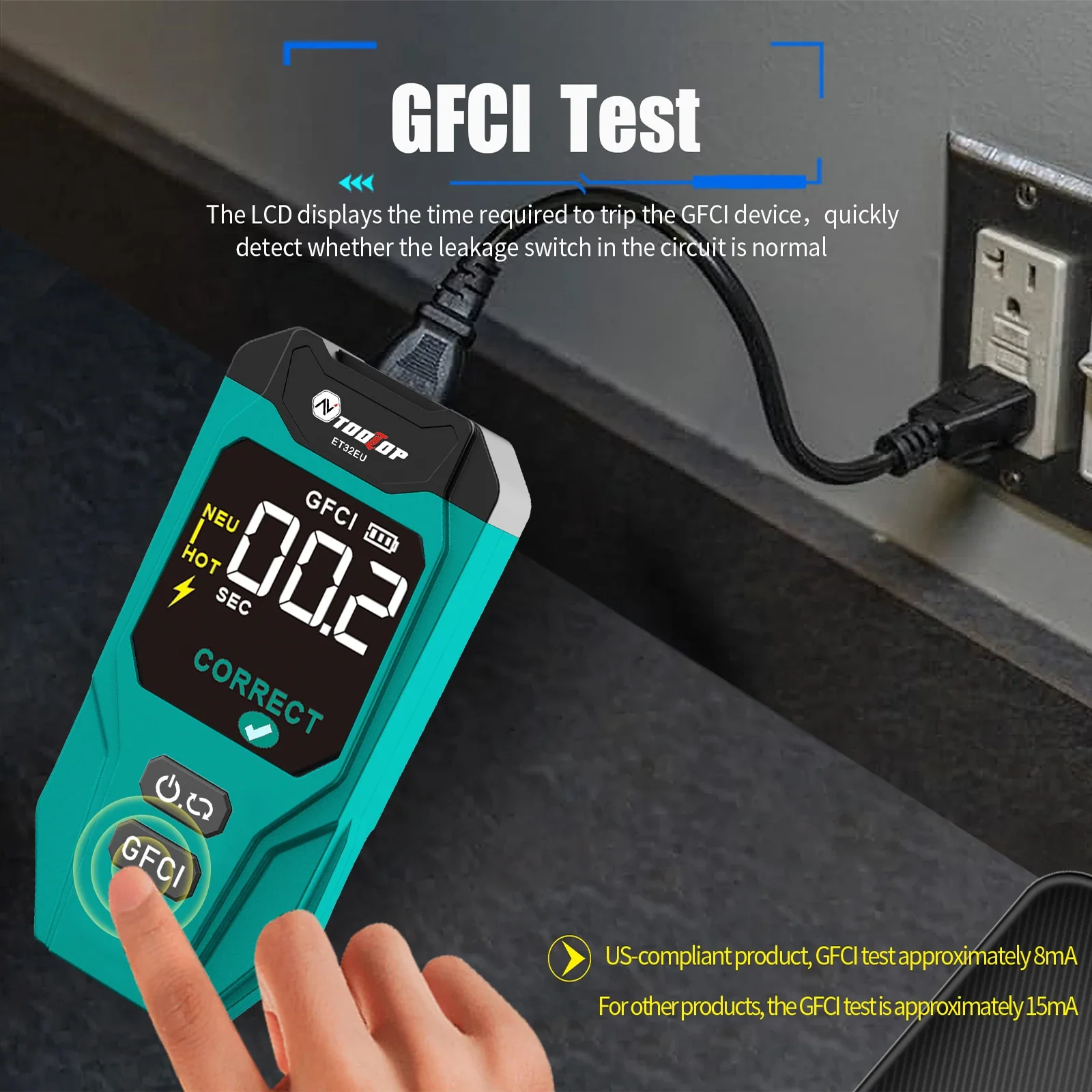

【Advanced GFCI Testing & Trip Time】: Beyond standard socket testing, this tool measures the actual disconnect response time of GFCI breakers, providing critical safety data for professional electricians and home inspections.

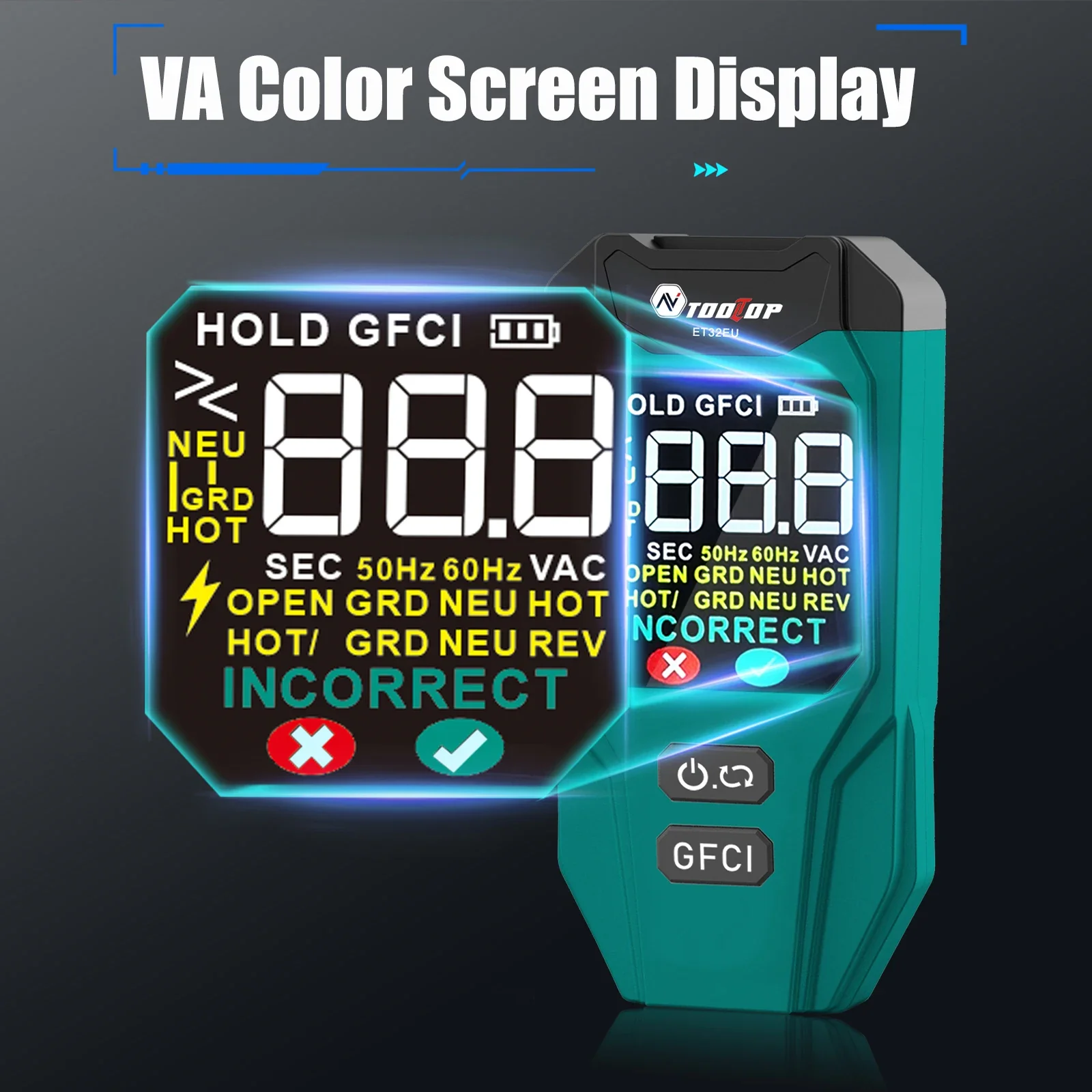

【VA Color LCD & Voltage Readout】: The vibrant VA color display provides real-time readouts of Line-to-Neutral and Neutral-to-Ground voltages, along with clear visual status indicators for wiring conditions.

【Comprehensive Wiring Diagnostics】: Instantly identifies common wiring faults including Open Lead, Open Ground, Hot/Neutral Reverse, and Hot/Ground Reverse with "Normal/Error" status prompts.

【Rechargeable & Eco-Friendly】: Both the transmitter and receiver are powered by built-in 800mAh 3.7V rechargeable lithium batteries, saving you money on disposable batteries while supporting environmentally friendly operation.

【Safety & Versatility】: Equipped with an NCV (Non-Contact Voltage) sensor (90V–1000V) for added safety, adjustable sensitivity for complex environments, a built-in work light, and an extension cord design to reach any outlet position.

Specifications：
Breaker Detection Range: 0 – 3 cm

Operating Voltage: AC 90V – 120V (50/60Hz)

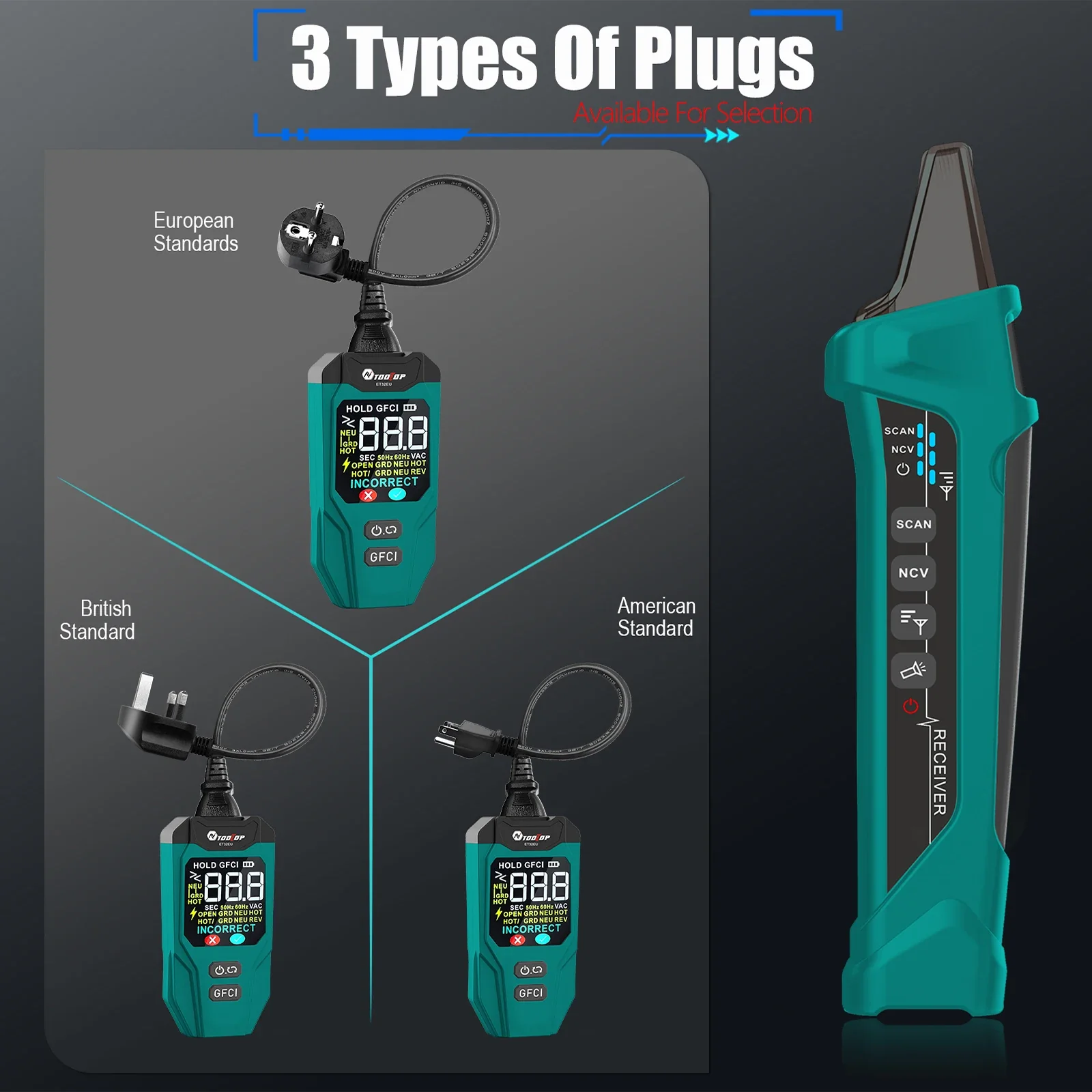

Standard Plug Type: US Standard

GFCI Test: Yes (Displays Trip Response Time)

Display Type: VA Color LCD with 0–3 bar Battery Indicator

Line Voltage Measurement: Hot-Neutral / Neutral-Ground Voltage

Wiring Fault Detection: Open Hot, Open Ground, Hot/Neutral Cross, Hot/Ground Cross

Leakage Search Modes: Learning Mode / Standard Mode

NCV Testing Range: AC 90V – 1000V (50/60Hz)

Battery Capacity: 800mAh 3.7V Lithium Battery (Transmitter & Receiver)

Operating Current: Transmitter: ~80mA / Receiver: ~150mA

Safety Features: Adjustable Sensitivity, Built-in LED Flashlight, Audible/Visual Indicators

Dimensions: 240 × 145 × 65 mm

Operating Environment: 0°C – 50°C; <85% Humidity

Package List：
1 × Circuit Breaker Receiver

1 × Circuit Breaker Transmitter

1 × Power Cord with Socket Extension Design

1 × USB Charging Cable

1 × User Manual

1 × Durable Carrying Tool Bag

1 × Premium Color Gift Box
