UNI-T Insulation Resistance Tester UT512 500V--2500V Earth Ground 1MĪ©ļ½100GĪ© Ohm Meter AC DC Voltmeter
UT510 Series Insulation Resistance Testers
UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

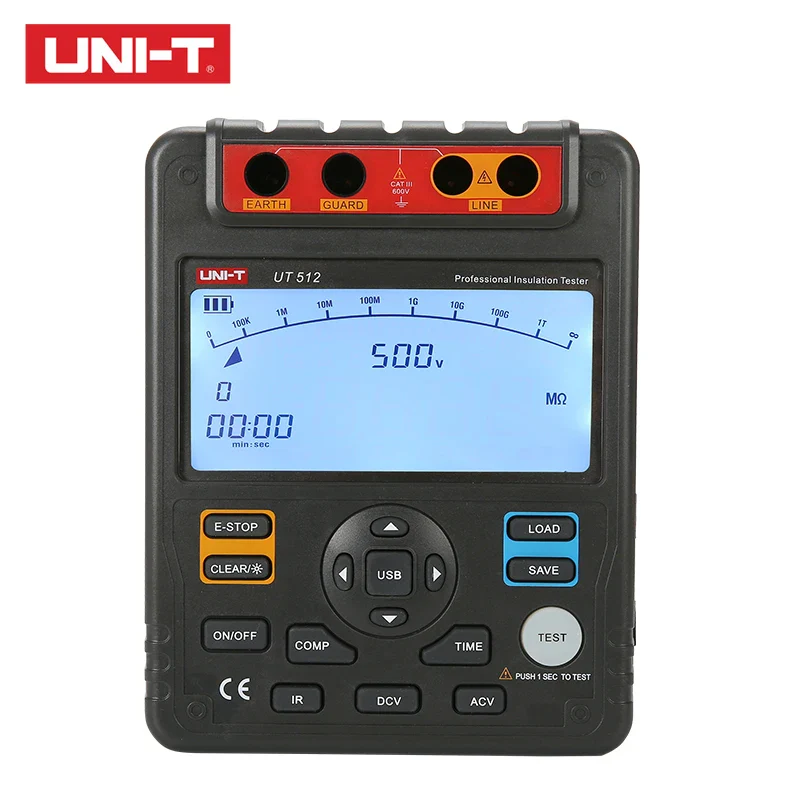

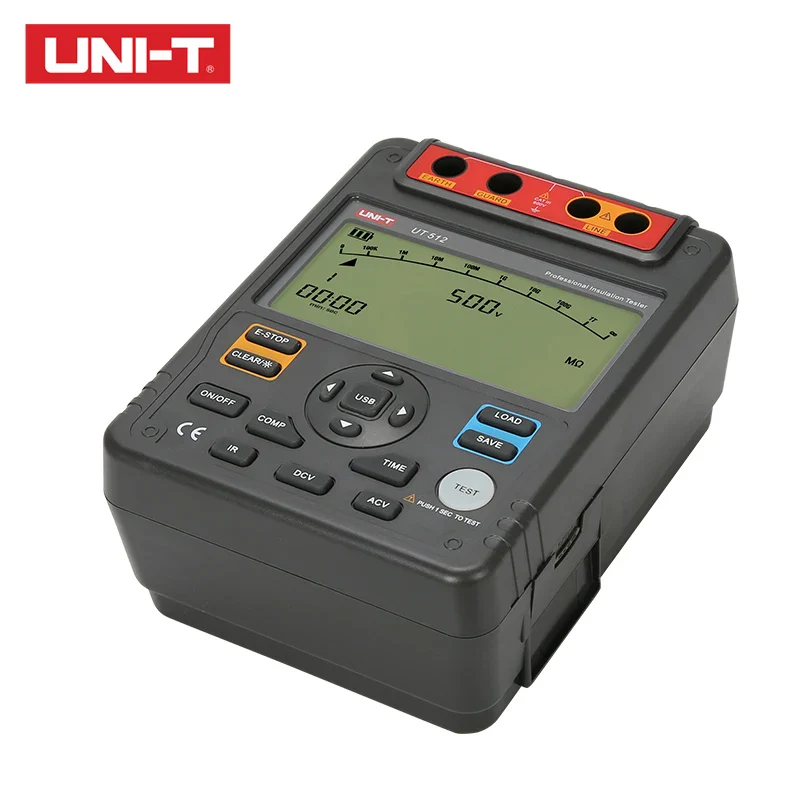

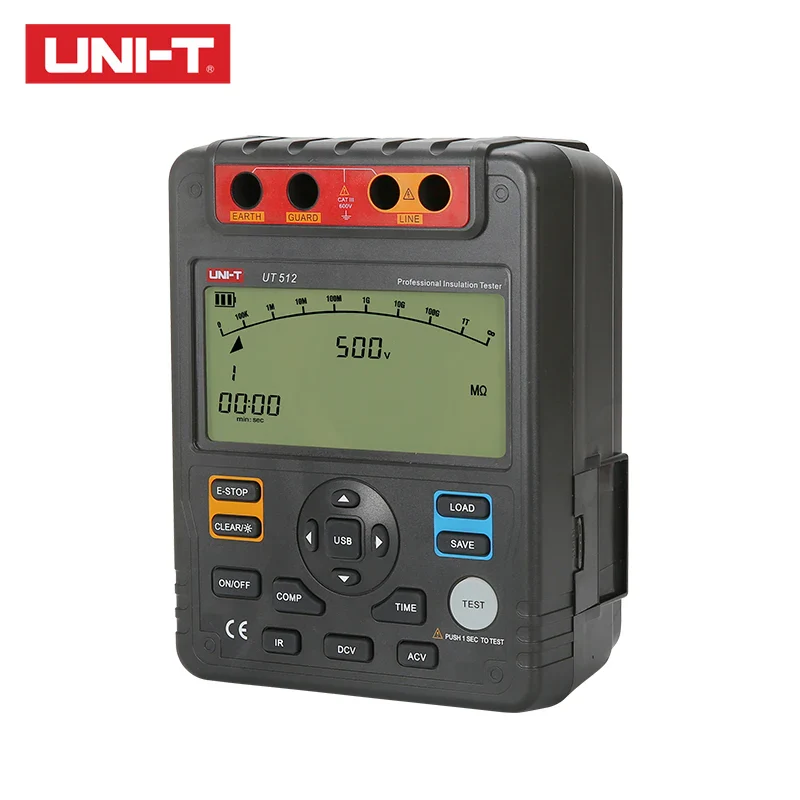

Features of UT512 Insulation Resistance Testers
1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage
7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Power adapter
10. Time measurement mode, auto measure within 15 minutes
11. USB interface and PC software
12. Low battery and over range indications
|
Specifications |
Ā |
Range |
UT512 |
|
Insulation resistance (Ī©) |
Test voltages |
500V~2500V |
0%~20% |
|
500V |
0.5MĪ©~5GĪ© |
Ā±(3%+5) |
|
|
1000V |
2MĪ©~10GĪ© |
Ā±(3%+5) |
|
|
1500V |
5MĪ©~20GĪ© |
Ā±(3%+5) |
|
| Ā |
10MĪ©~100GĪ© |
Ā±(3%+5) |
|
|
DC voltage (V) |
600V |
Ā±(2%+5) |
|
|
AC voltage (V) |
600V |
Ā±(2%+5) |
|
|
Short-circuit current |
Ā |
<1.8mA |
|
|
Features |
|||
|
Auto range/Auto power off |
Ā |
ā |
|
|
Low battery indication |
Ā |
ā |
|
|
Data storage |
Ā |
18 |
|
|
Comparison measurement |
Ā |
ā |
|
|
Polarization index (PI) |
Ā |
ā |
|
|
Dielectric absorption ratio (DAR) |
Ā |
ā |
|
|
USB interface |
Ā |
ā |
|
|
Analog bar graph |
Ā |
30 |
|
|
LCD backlight |
Ā |
ā |
|
|
Over-range warning |
Ā |
ā |
|
|
High voltage indication |
Ā |
ā |
|
|
Timing measurement |
Around 15 minutes |
ā |
|
|
General Characterisitics |
|||
|
Power |
1.5V battery (LR14) x 8ļ¼no include |
||
|
Display |
123mm x 58mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
1.8kg |
||
|
Product size |
202mm x 155mm x 94mmĀ Ā |
||
|

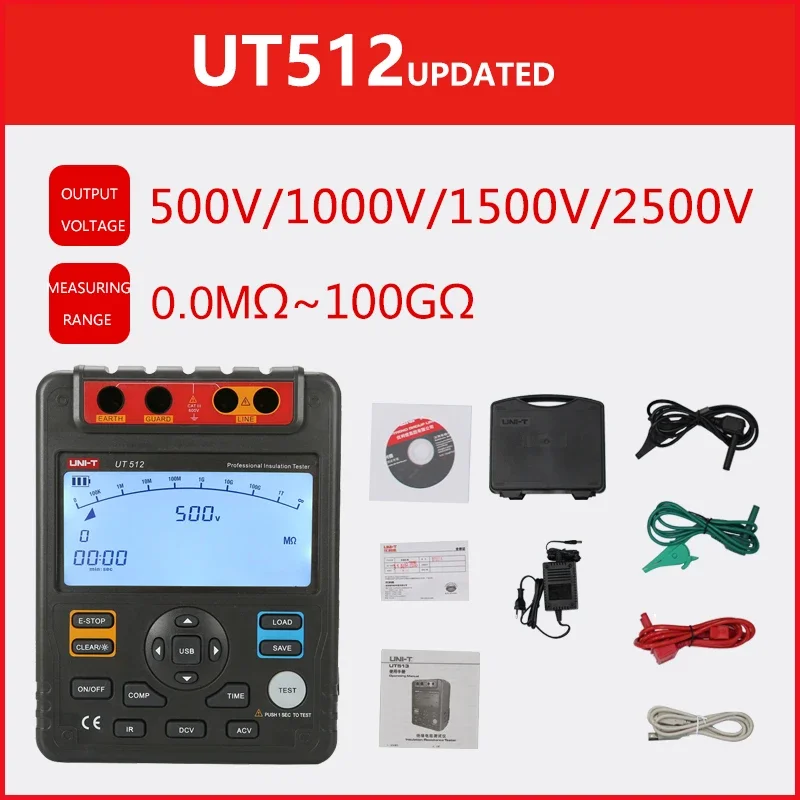

Standard accessories |

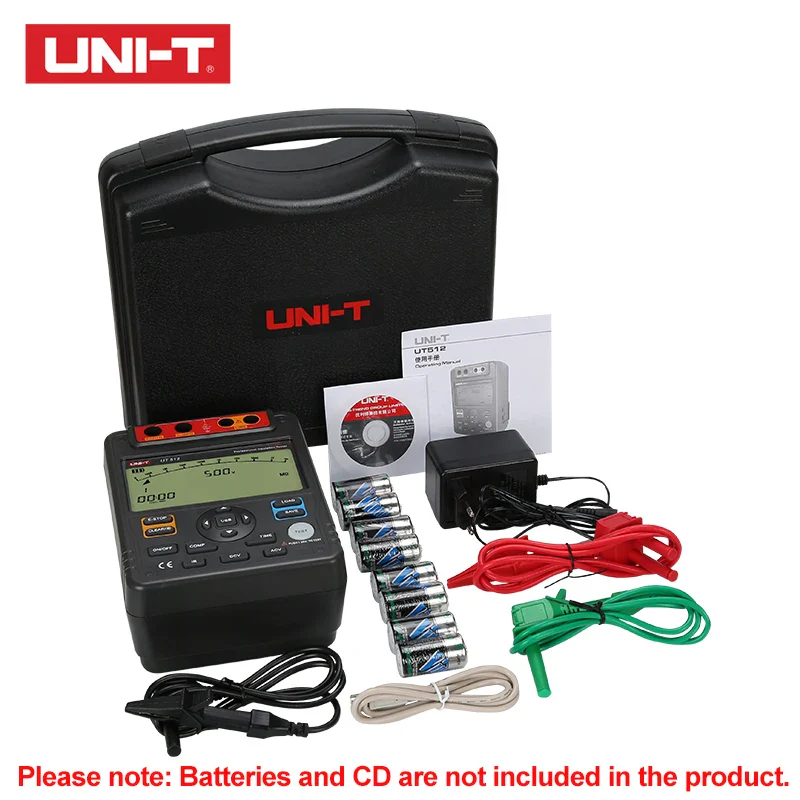

2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USBĀ cable, power adaptor |
||
|
Standard individual packing |
Gift box, tool box, English manual |
||
|
Standard quantity per carton |
4pcs |
||
|
Standard carton measurement |
505mm x 345mm x 345mm |
||
|
Standard carton gross weight |
15.9kg |
||
Please note: For environmental protection ,All of paper manual and CD in product is cancelled . UNI-T Offer electronic instruction in english, please follow the guide in package to download software and manual from our offical website,or ask customer service to get it .
