UNI-T UT343A Digital Paint Tester Car Coating Thickness Gauge Film Lacquer Meter Automotive Tools Measuring FE/NFE

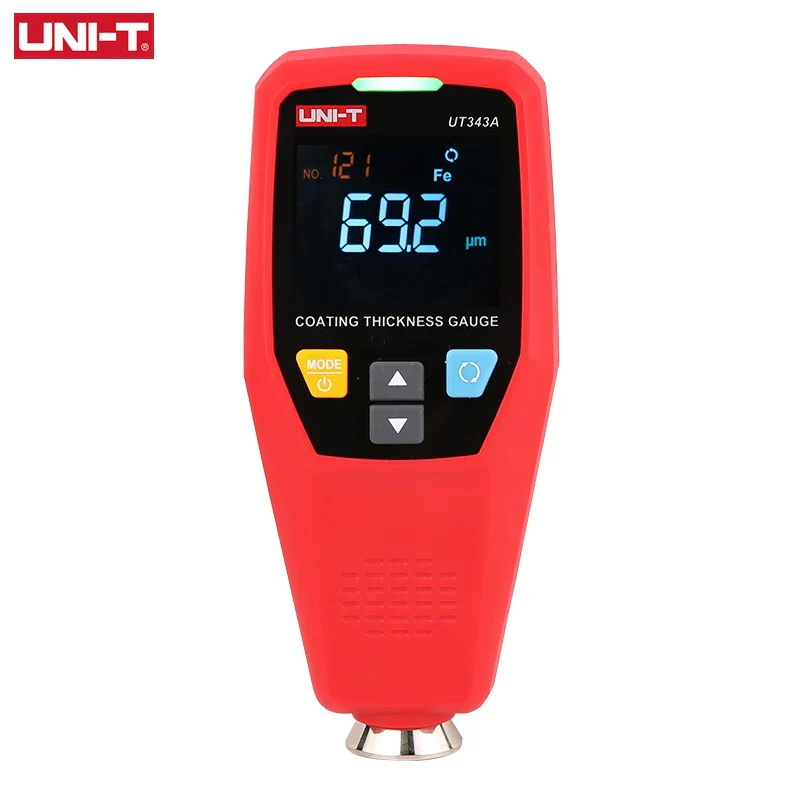

UT343A Coating Thickness Gauge
UT343A is used to measure the thickness of the plated and coated sheet on ferrous/non-ferrous, it has the large range up to 1750um, which is widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in workshop and outdoor.
Features
1. Adopt two thickness measurement methods: magnetic and eddy current
2. It can measure the thickness of the non-conductive coating on the magnetic metal substrate.
3. Automatically identify ferrous and non-ferrous substrates.
4. Using high-precision sensors, it has the characteristics of precision, wear resistance and stability.
5. Use single-point and multi-point calibration methods for calibration,
6. Red, green, and yellow three-color warning lights indicate the current value attributes
7. Turn on, turn off and measure sound prompts.
8. The screen display content can be rotated up and down,
9. Large-capacity memory chip, which can store 199 data.
Parameter
|
Specifications |
Range |
|
Certificates |
RoHS |
|
Measuring range |
0~1750um |
|
Accuracy |
Ā±(3%H+1)um |
|
Measurement method |
Single/Continuous |
|
Measurement mode |
Max/Min/Avg |
|
Metal type |
Ferrous/non-ferrous |
|
Features |
|
|
Display type |
EBTN display |
|
LCD brightness control |
ā |
|
Rotatable screen |
ā |
|
Unit conversion |
ā |
|
Audio alarm |
ā |
|
LED alarm |
ā |
|
Data storageĀ |
199 groups |
|
Auto power off |
ā |
|
Low battery indication |
ā |
|
General Characteristics |
|
|
Power |
1.5V battery (LR03) x 2 (No include) |
|
Product color |
Red and grey |
|
Product net weight |
About 111g |
|
Product size |
117mm x 53mm x 37mm |

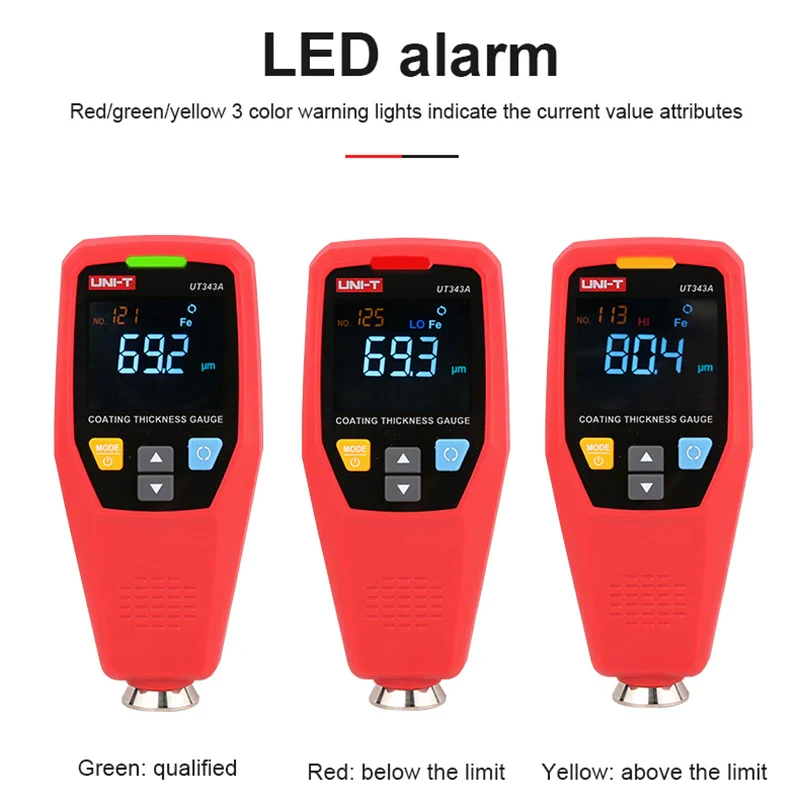

LED alarm
Red, green, and yellow three-color warning value attributes
Green: qualified; Yellow: higher than the limit; Red: lower than the limit
The screen display can be rotated up and down for easy reading

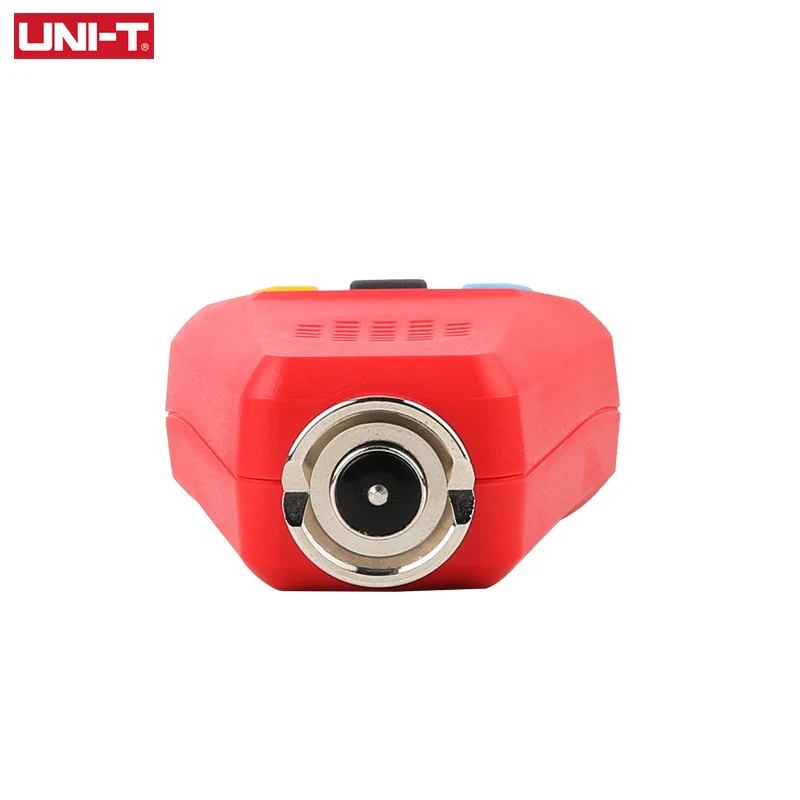

High precision sensor
Data storage
Double injection protection

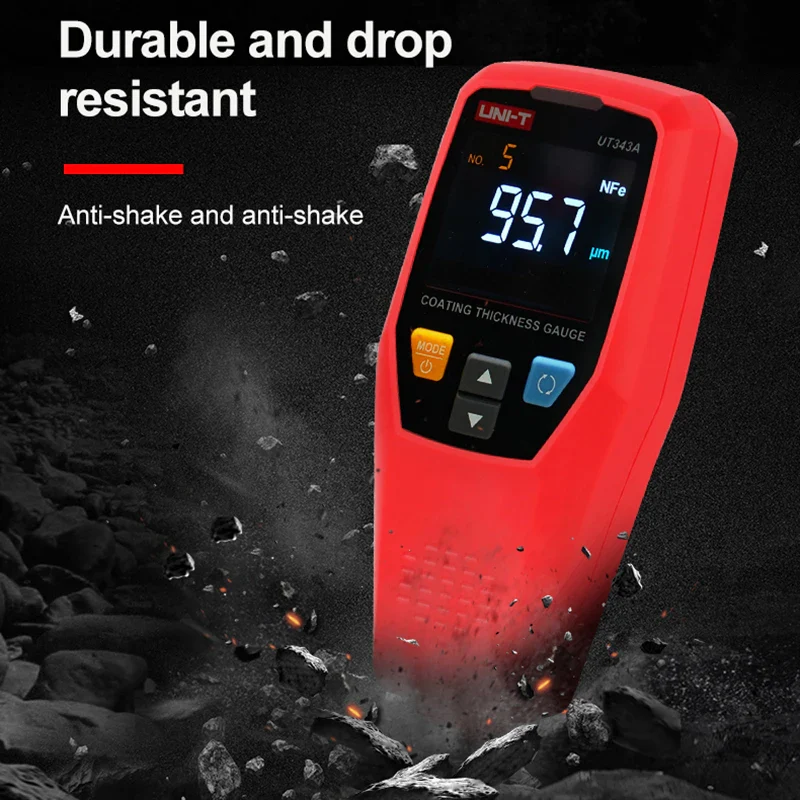

Durable and drop resistant
Notice please: battery no include!
