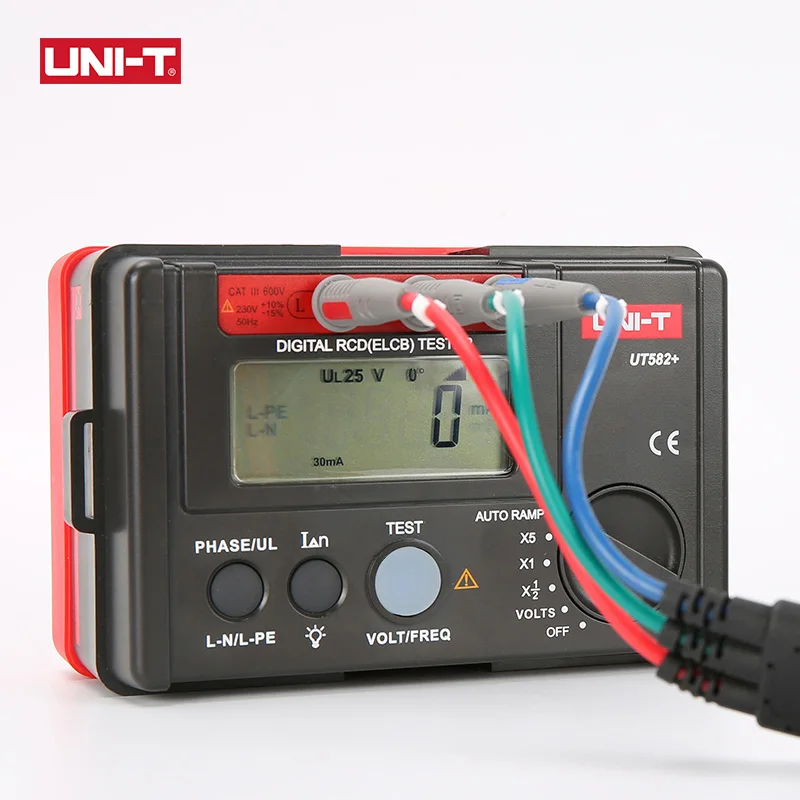

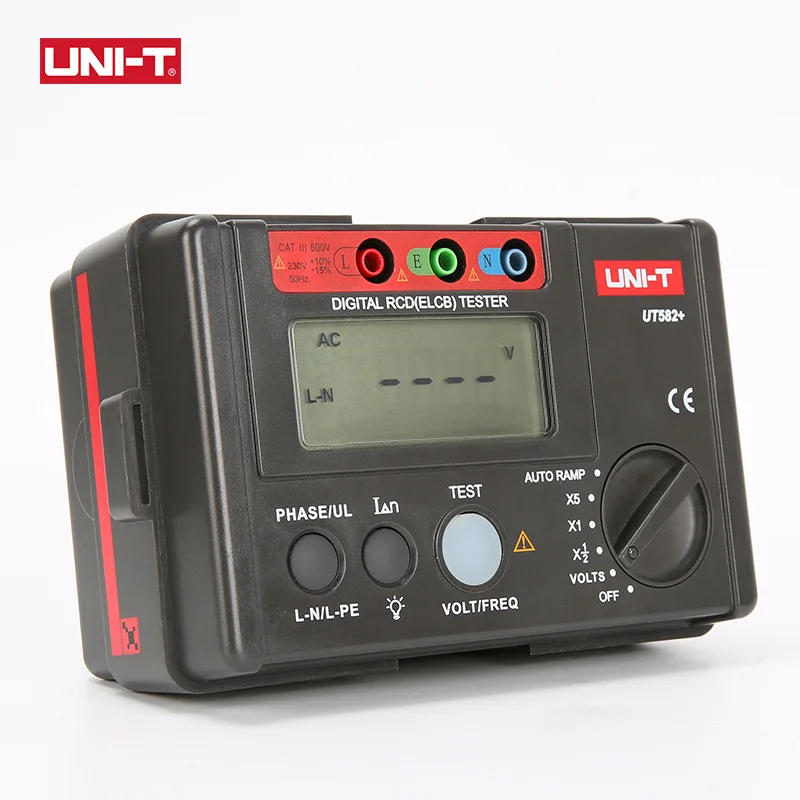

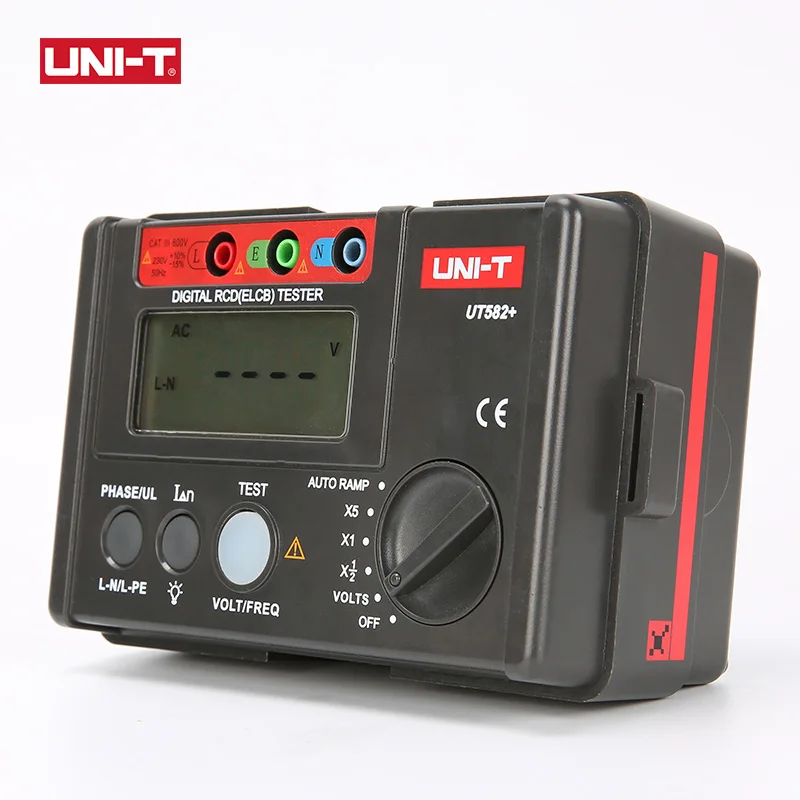

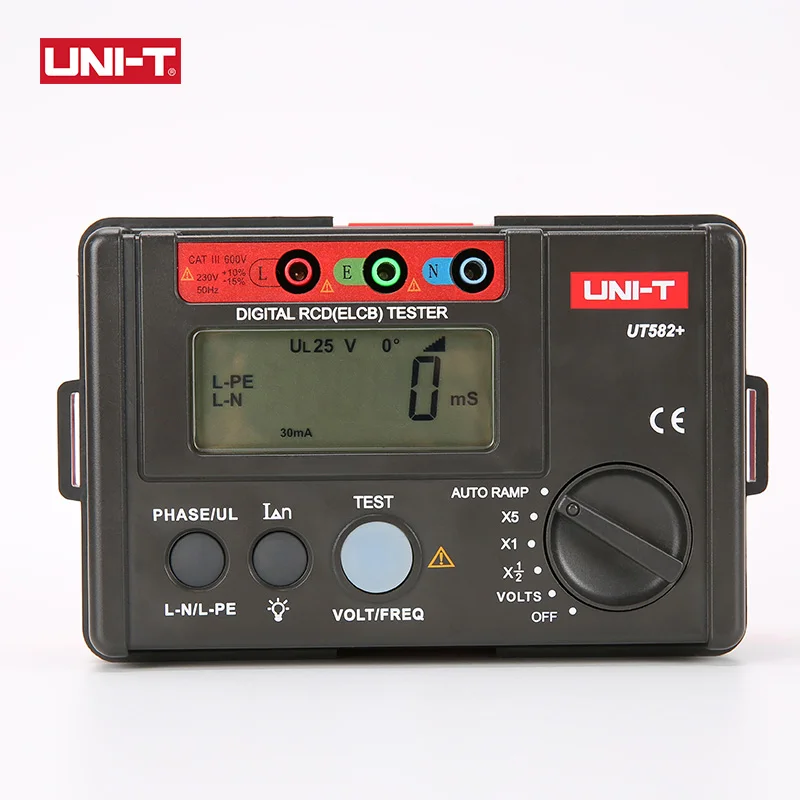

UNI-T UT582+ Digital RCD (ELCB) Tester AUTO RAMP Leakage Circuit Breaker Meter with Mis-Operation Buzzer
Ā
UT582+ is mainly used to detect whether the RCD in the circuit canbe triggered normally. It is only suitable for single-phase circuitswith the supply voltage range of 195V~253V. Its voltage measurementrange is 30V~600V, 45Hz ~65Hz.
Ā
Ā
Ā
|
Specifications |
Range |
Accuracy |
||
|
RCD measurement |
Range setting |
Rated operating current |
Trip time |
Ā |
|
X 1/2 |
10mA/20mA/30mA/100mA/300mA/500mA |
2000ms |
-10%~0% |
|
|
X 1 |
10mA/20mA/30mA/100mA/300mA |
1000ms |
0%~10% |
|
|
500mA |
300ms |
0%~10% |
||
|
X 5 |
10mA/20mA/30mA |
40ms |
0%~10% |
|
|
AUTO RAMP |
10mA/20mA/30mA/100mA/300mA/500mA |
300ms |
-10%~10% |
|
|
Trip time accuracy |
Ā±(2%+2) |
|||
|
Operating voltage (Freq.) |
195V~253V |
|||
|
Voltage measurement |
Voltage range |
30~600V |
||
|
Frequency |
45Hz~65Hz |
|||
|
Resolution |
1V |
|||
|
Accuracy |
Ā±(3%+3) |
|||
|
Features |
||||
|
Display count |
999 |
|||
|
Power oļ¬ gear |
ā |
|||
|
Low battery indication |
<7.2V |
|||
|
APO |
Auto power oļ¬ fuction |
|||
|
LCD backlight |
ā |
|||
|
Data hold |
ā |
|||
|
Phase angle selection |
0Ā° and 180Ā° |
|||
|
Connections check |
Simultaneously test the trip time and trip current |
|||
|
AUTO RAMP |
ā |
|||
|
Disconnect buzzer |
ā |
|||
|
Over-range display |
OL |
|||
|
Fused |
ā |
|||
|
Mis-operation buzzer |
ā |
|||
|
Power oļ¬ buzzer |
ā |
|||
|
Full icon display |
ā |
|||
|
Compliance standard |
IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 |
|||
|
Lead sequence check |
LCD |
|||
|
General Characterisitics |
||||
|
Power |
1.5V battery (LR6) x 6 |
|||
|
Display |
71mm x 34mm |
|||
|
Product color |
Red and grey |
|||
|
Product net weight |
400g |
|||
|
Product size |
160mm x 100mm x 71mm |
|||
Ā
Notice please: battery no include! Ā
Ā
