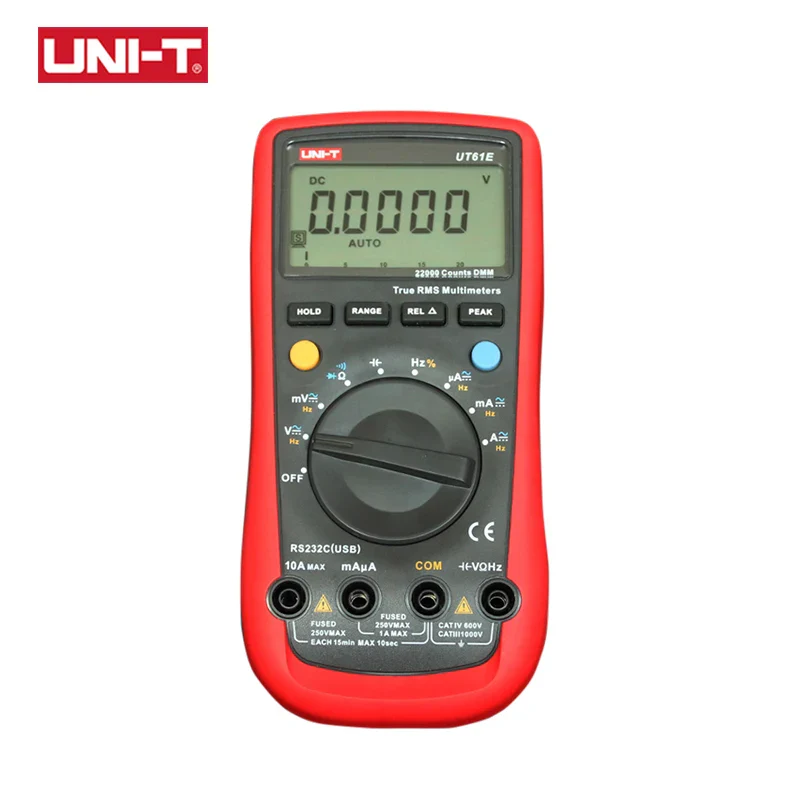

UNI-T UT61E Digital Multimeter Meter True RMS 1000V AC DC Multimeter Voltage Tester Relative Mode 22000 Counts High Reliability

UNI-T UT61E Digital Multimeter Meter True RMS 1000V AC DC Multimeter Voltage Tester Relative Mode 22000 Counts High Reliability

Features

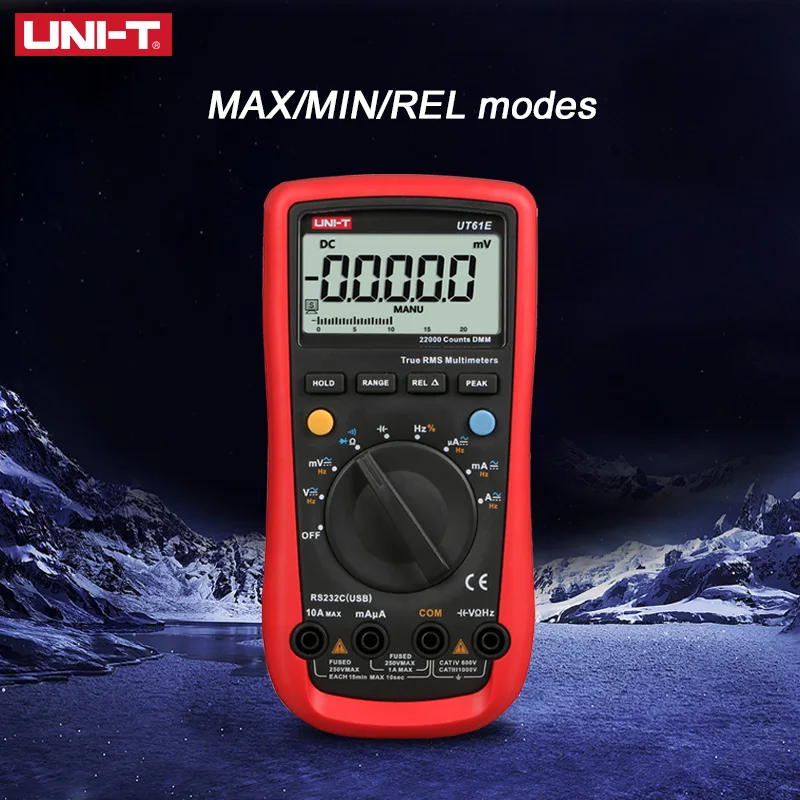

1. MAX/MIN/REL modes

2. RS-232 and USB interface

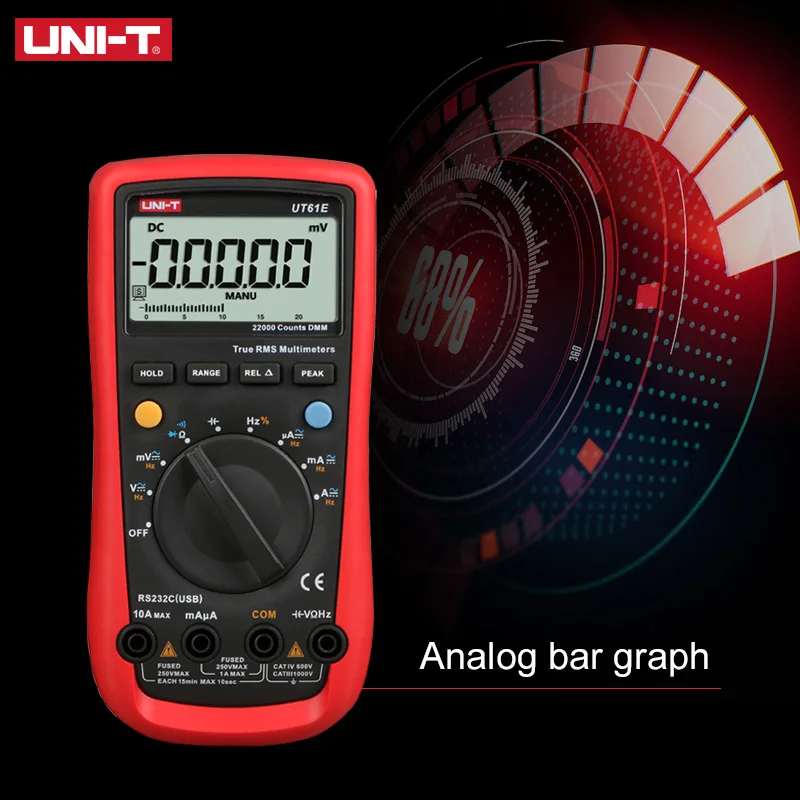

3. Analog bar graph

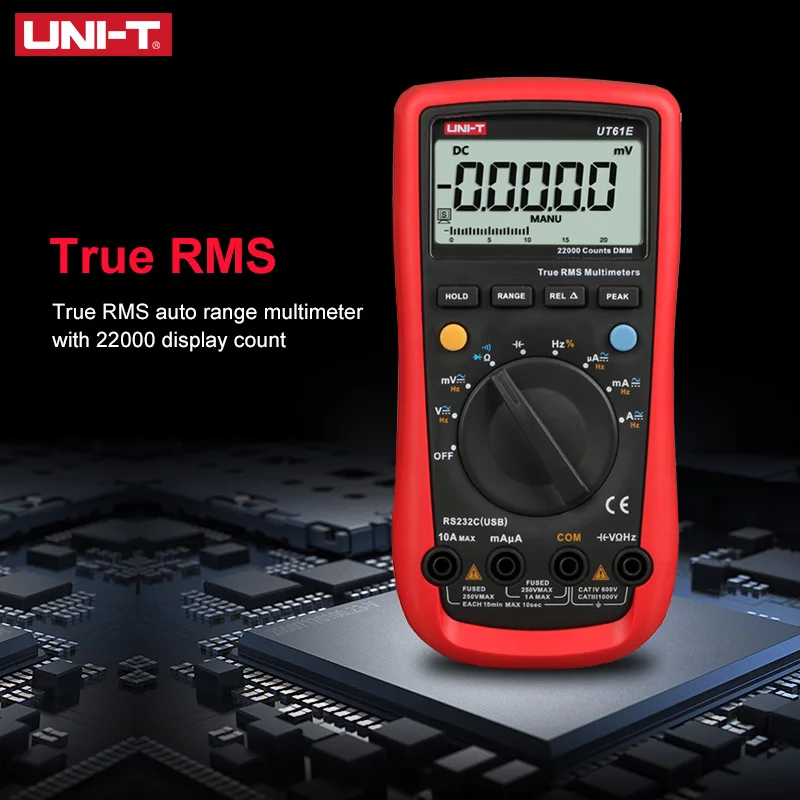

4. True RMS

5. Peak hold


Specifications
Range
Best Accuracy
Model UT61E
DC Voltage (V) 220mV/2.2V/22V/220V/1000V Ā±(0.1%+2)
AC Voltage (V) 220mV/2.2V/22V/220V/750V Ā±(0.8%+10)
DC Current (A) 200Ī¼A/2200Ī¼A/22mA/220mA/2.2A/10A Ā±(0.5%+10)
AC Current (A) 200Ī¼A/2200Ī¼A/22mA/220mA/2.2A/10A Ā±(0.8%+10)

Features
Display Count 22000
Auto Range āˆš
True RMS āˆš
Bandwidth (Hz) 45Hz ļ½ž10kHz
Duty Cycle 0.1% ļ½ž 99.9% āˆš
Diode āˆš
Continuity Buzzer āˆš
Low BatteryĀ  Ā  Indication ā‰¤7.5V āˆš
Data Hold āˆš
Relative Mode āˆš
MAX/MIN āˆš
Peak Value āˆš
RS-232 āˆš
Analog Bar Graph 46
Input Protection āˆš
Input Impedance for DCV Around 10MĪ© āˆš
General Characteristics
Power 9V Battery (6F22) (not included)
LCD Size 65mm X 43mm
Product Color Red and grey
Product NetĀ  Ā  Weight 370g
Product Size 180mm X 87mm X 47mm

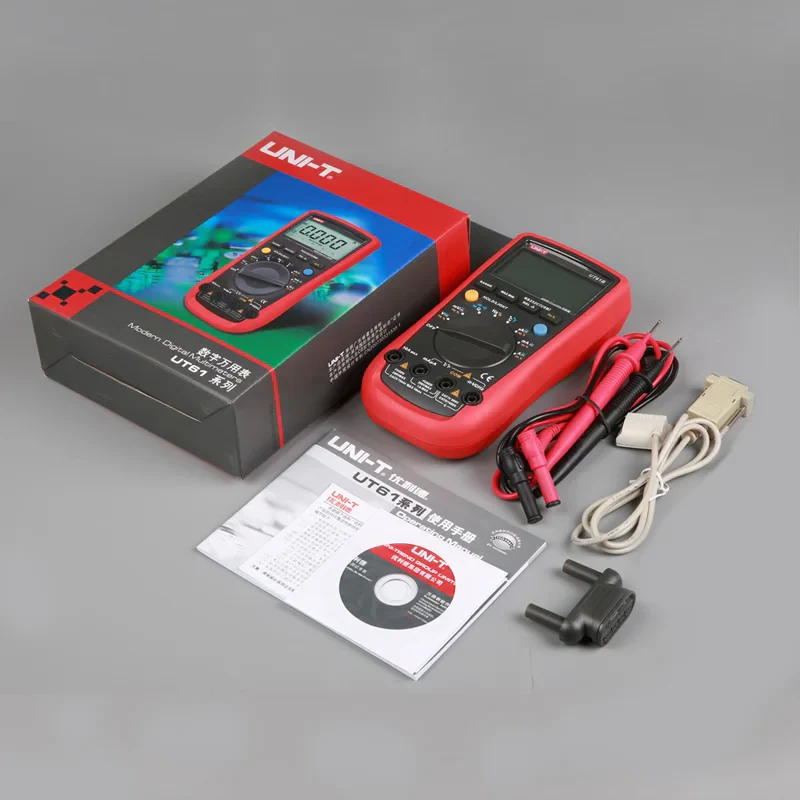

Standard Accessories Battery (if shipping from Russian inludes, from China not included),Ā Test Lead, Multi-Purpose Socket, RS-232 Interface Cable,
Standard Individual Packing Gift Box, English Manual

Note: If shipping from China, shipping company not allow to carry battery,so battery is not included
