UNI-T UT673PV Solar Panel MPPT Tester 5~800W PV Module Maximum Power Meter Open Circuit Voltage Short Circuit Current Test

UT673PV Solar Panel MPPT Tester

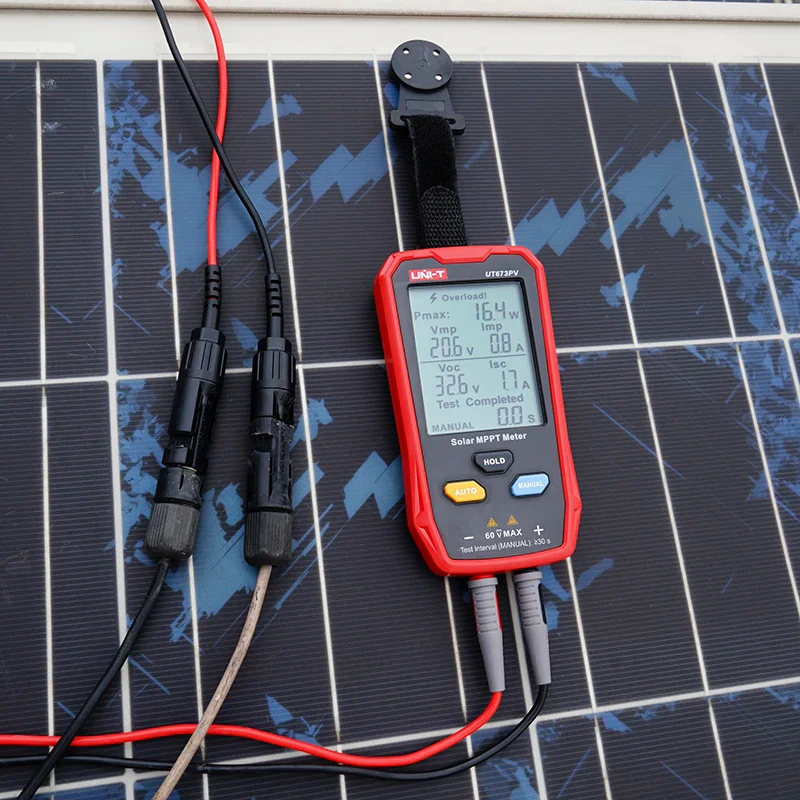

UT673PV Solar Panel MPPT Tester can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

Features of UT673PV Solar Panel MPPT Tester

● Maximum power test (Pmax) 5～800W
● Peak power voltage (Vmp) 12～60V
● Peak power current (Imp) 0～35A
● Open circuit voltage (Voc) 12～60V
● Short circuit current (Isc) 0～35A

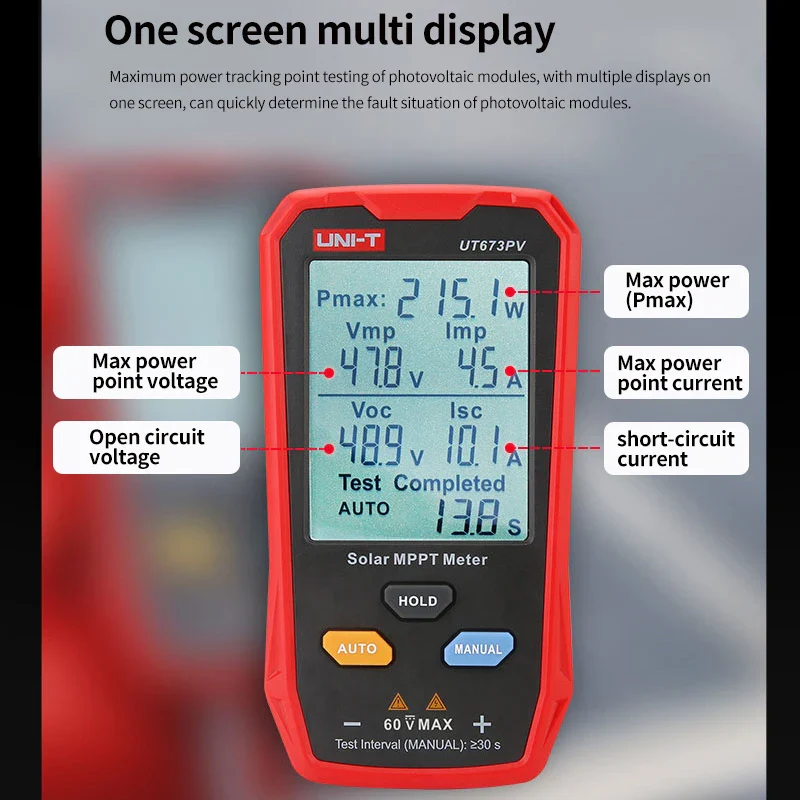

● Large screen and multiple result display
● No batteries needed, powered by the solar panel

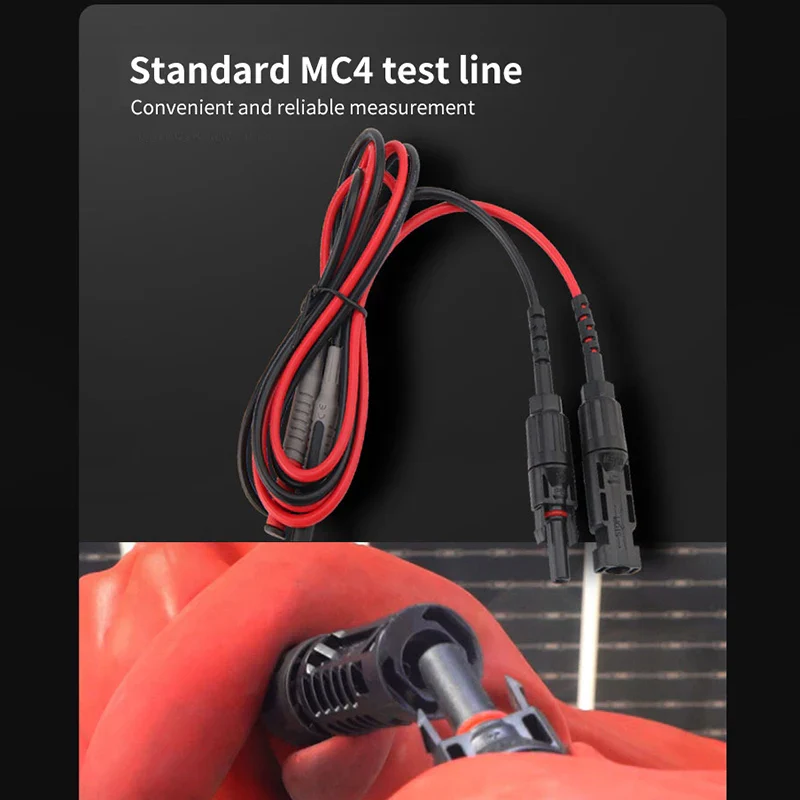

● Equipped with MC4 test lead

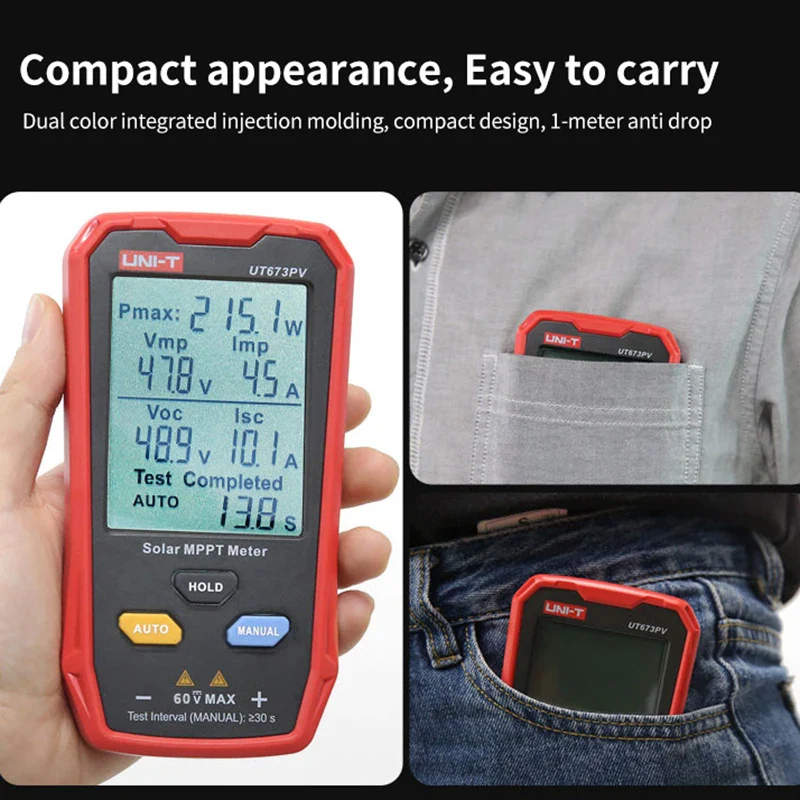

● Portable and convenient
